High Precision
The full-width standard is equipped with German imported brands to ensure that the error of each movement of the machine tool is controlled below 0.03 mm!

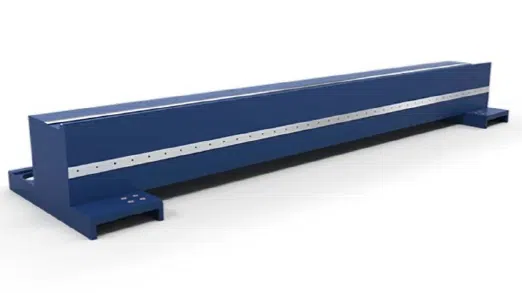

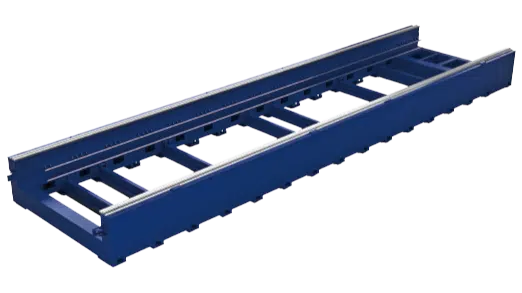

Stable and Reliable Bed
● Annealing to release stress;
● The bed is evenly stressed and stable;
● Plate welding ensures a solid bed;
Dynamic Performance
● Aluminum beams ensure light weight ;
● While maintaining structural stability;
● Reducer output power is stable;
Heavy load capacity for thick material

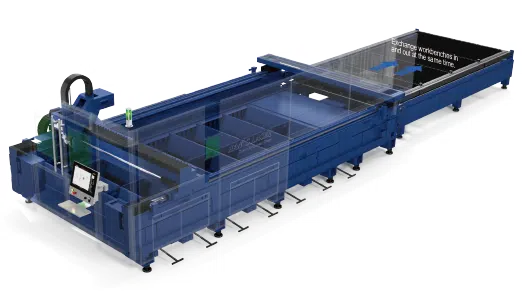

Strong exchange table design
● The workbench is pulled out for easy maintenance and cleaning;
● Exchange workbenches in and out at the same time.

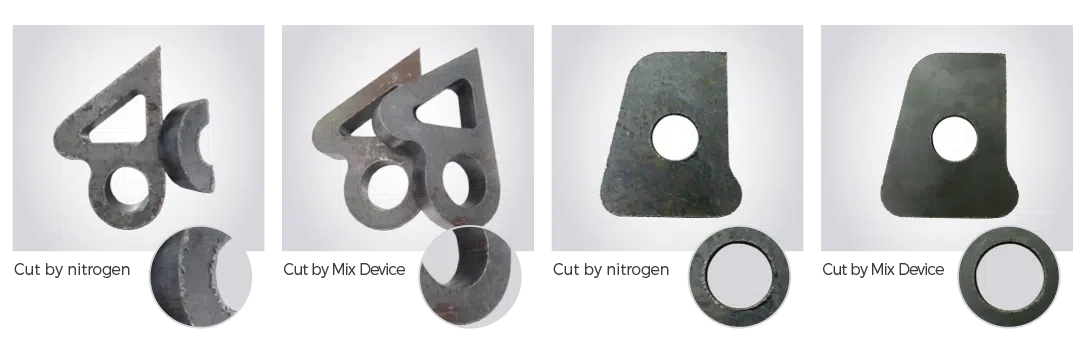

Mixed Gas Device
Mainly to solve the problem of customers cutting thick carbon steel plates with slag and burrs, and to increase the cutting speed.

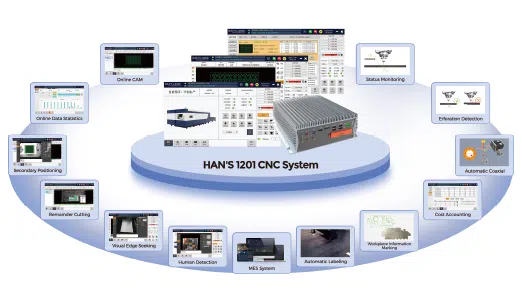

Fully Automatic Solution
Strong technical support and many project experience , offer various automation solution according to customer requirements.
Larger Cutting Area
Increased cutting area,be able to cut AS (American standard) sheet in “inch” size.
G-F Series
Working Area
Max axis positioning speed
Acceleration
Precision
Repeat positioning accuracy
Max sheet weight
Available laser power
3000mm×1500mm
140m/min
2.5G
±0.03mm/m
±0.02mm
900kg
3kW-60kW
4000mm×2000mm
140m/min
2.0G
±0.03mm/m
±0.02mm
2000kg
3kW-60kW
6000mm×2000mm
140m/min
2.0G
±0.03mm/m
±0.02mm
5600kg
3kW-60kW
6000mm×2500mm
140m/min
2.0G
±0.03mm/m
±0.02mm
6000kg
3kW-60kW
8000mm×2500mm
140m/min
2.0G
±0.03mm/m
±0.02mm
9400kg
3kW-60kW
12000mm×15000mm
140m/min
2.0G
±0.05mm/m
±0.03mm
14000kg
3kW-60kW
