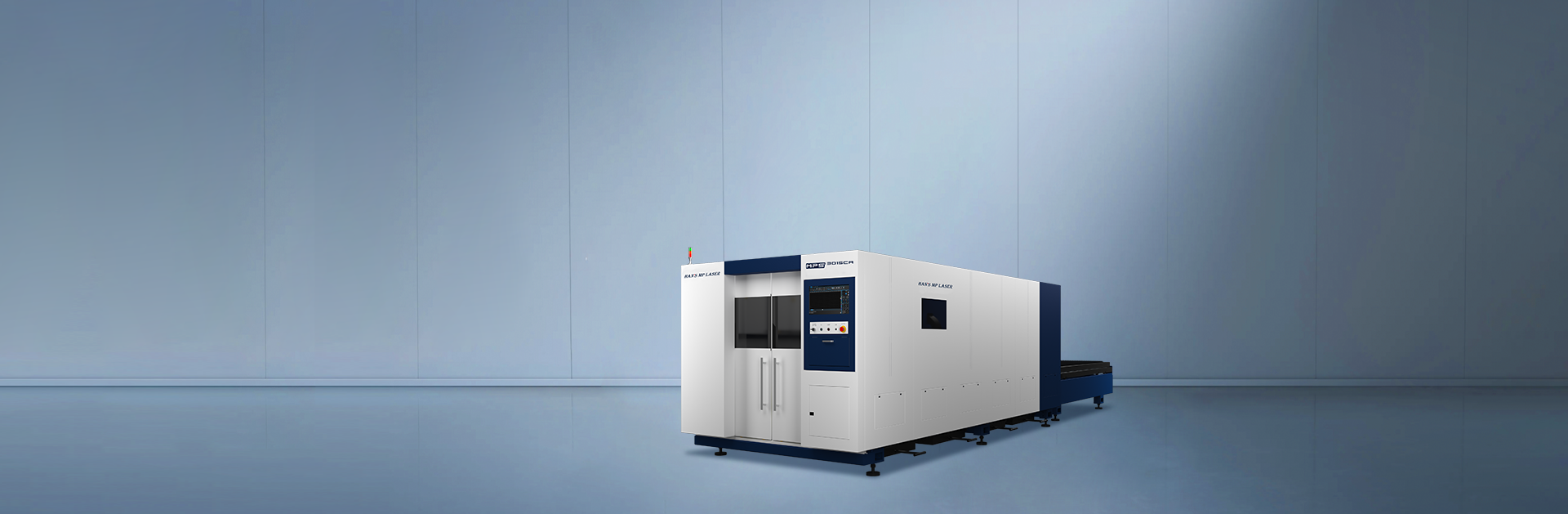

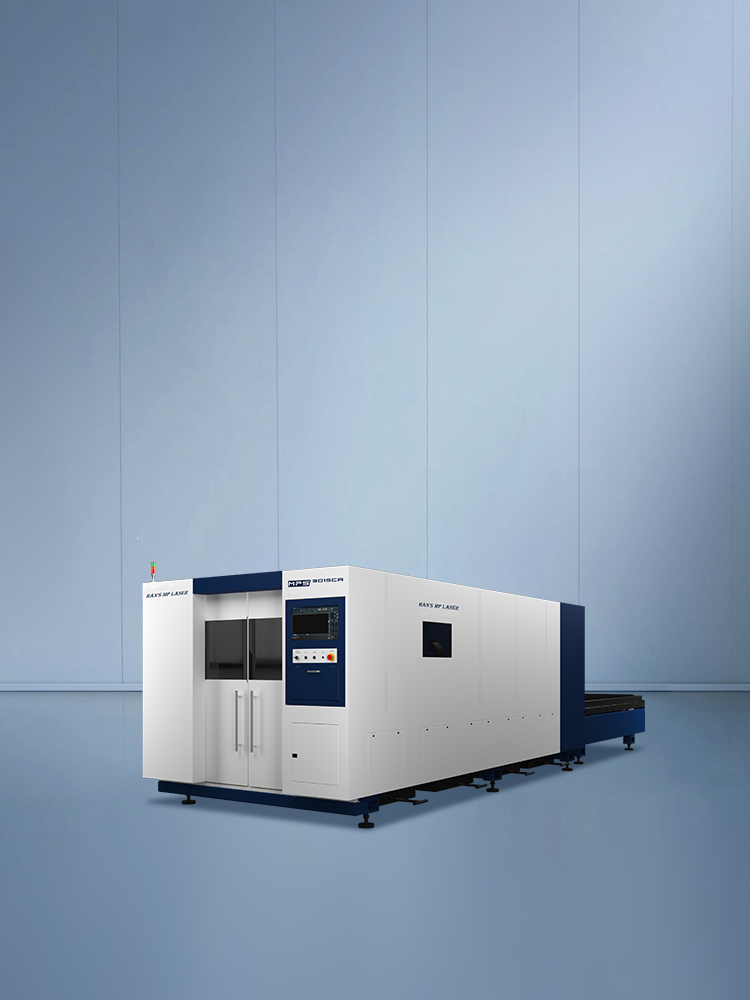

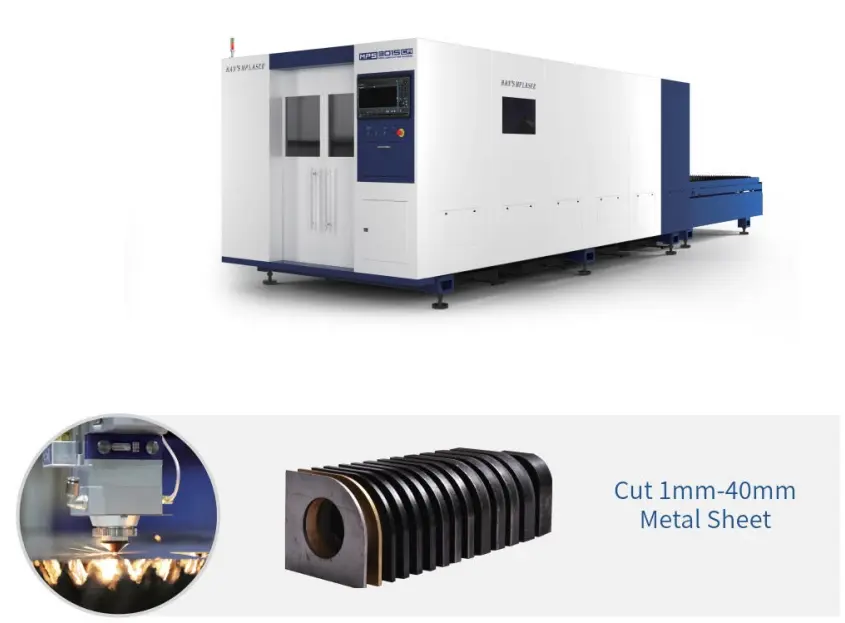

Why Choose MPS-CA for Metal Cutting
● Cutting Capacity: 1500W-12000W laser can be freely selected ;
● Laser Safety : CE certification guarantees equipment safety;
● High Brightness Cutting: 34um core diameter laser, heat concentration, greatly improving the cutting speed of thin plates;
● Intelligent System + Black Diamond Cutting Head: diverse functions, simple operation, strong anti-interference ability, high-quality cutting of medium and thick plate;
● Efficient Production: Dual workbench design increases work efficiency by 100%;

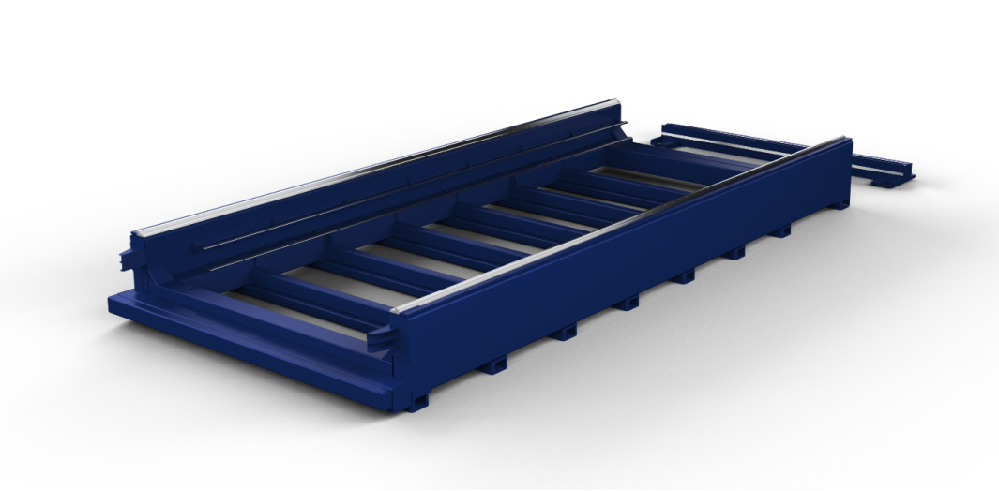

One-time Processing
The bed is welded as a whole and annealed to eliminate internal stress. Secondary vibration aging treatment, dust extraction on both sides of the bed. Excellent shock resistance, rigidity and stability.

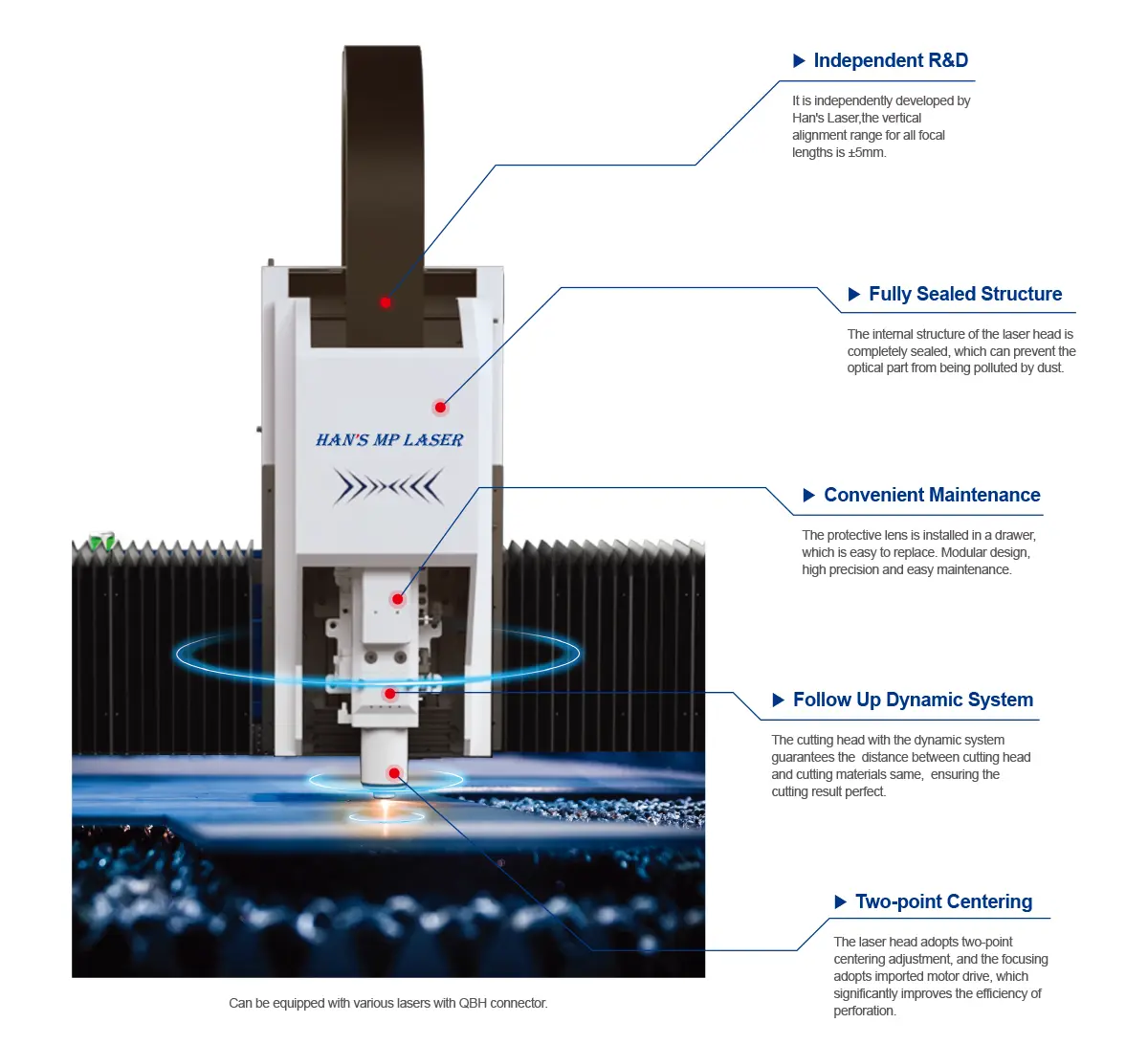

Independently Developed Laser Cutting Head
Excellent technology,reliable and stable. Two-point centering adjustment is adopted, and the focusing is driven by servo motor, which significantly improves the efficiency in perforation. lt can be equipped with various lasers with QBH connectors.
Laser Source Advantages
Good beam quality, high electro-optical conversion rate,wide modulation frequency range, strong anti-high-reflection ability, high stability and reliability, good processing effect,and maintenance-free operation.

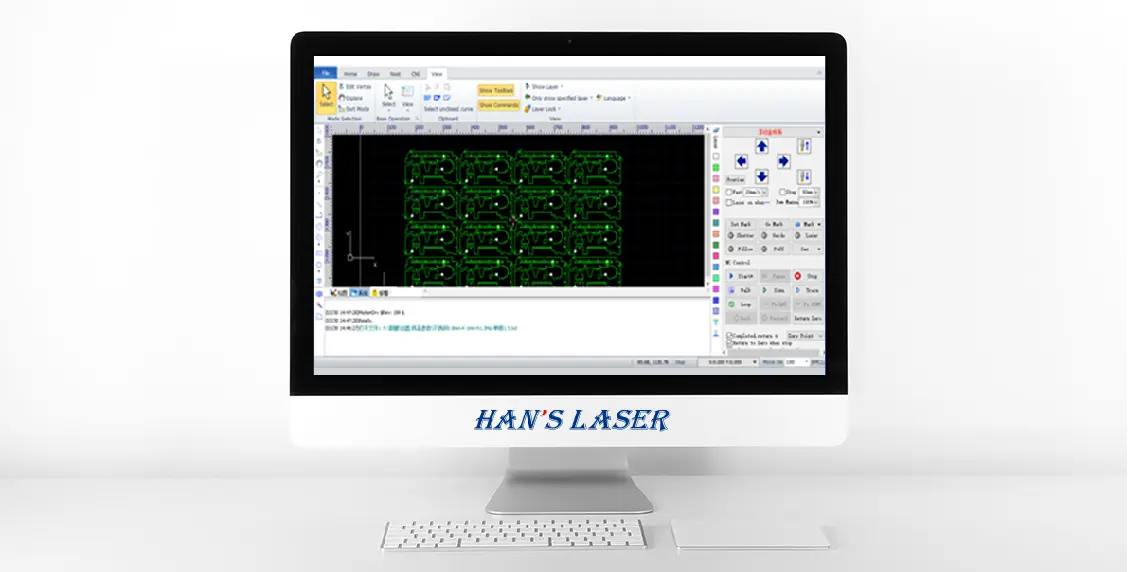

Control System
Easy to learn, mainstream market, strong scalability, intelligent control
● Non sensory perforation ;
● Seamless micro connection;
● Multi level perforation;
● Perforation slag removal;
● Vibration suppression;
● Intelligent knife retraction;

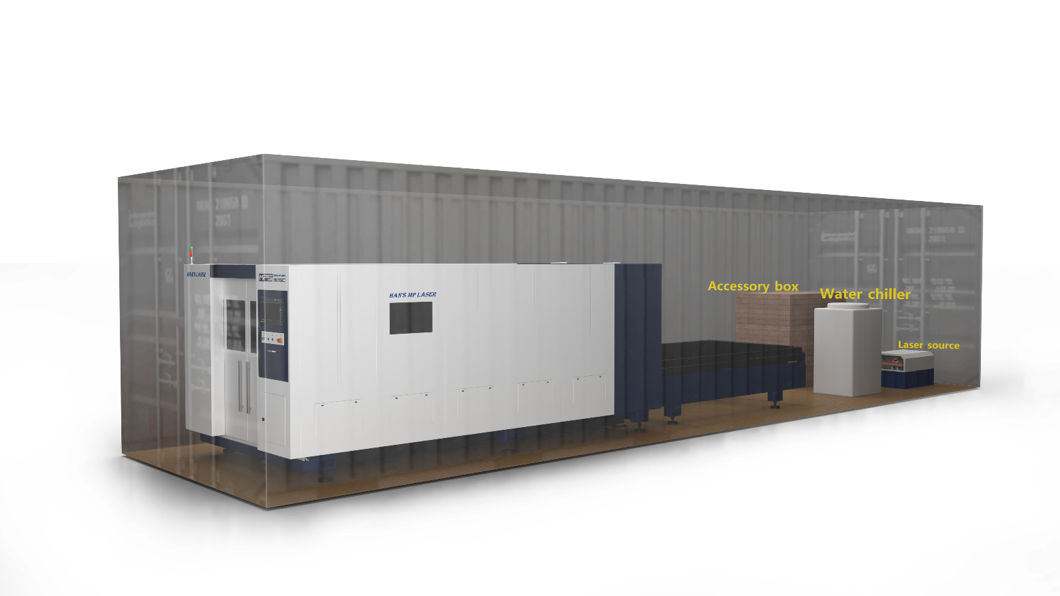

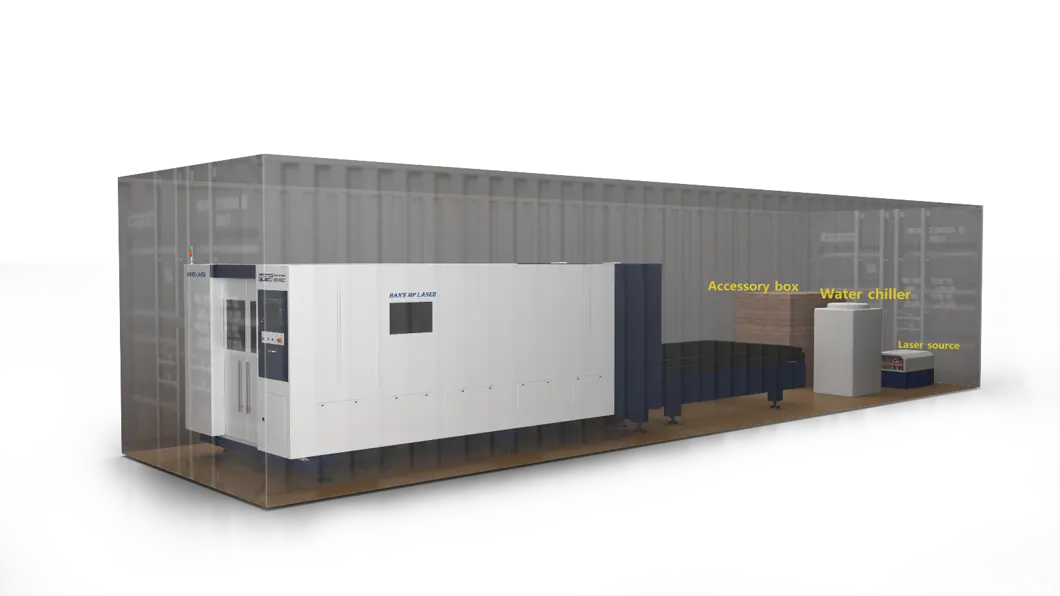

Whole Machine Loaded into 40GP Container
The 3015CA whole machine can be loaded into a 40GP container, the floor space is 25% less than previous packing scheme, which greatly saves freight cost.

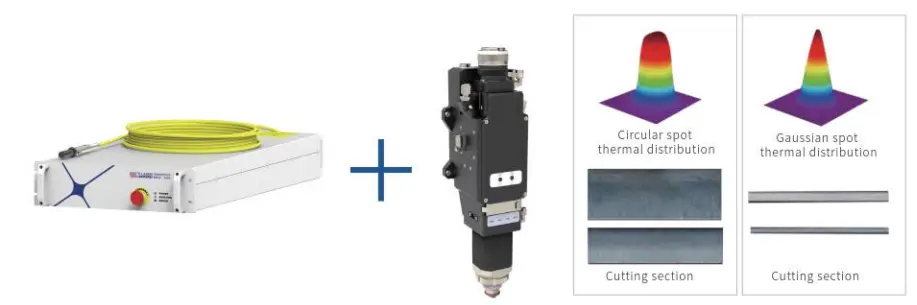

Metal Cutting Gold Combination
FUSCUT Intelligent Cutting Head+High Brightness Laser, Increases Cutting Speed of Medium and Thin Plates by 100%-300% ;
● Bus design, standard intelligent sensors, anti-collision design, faster cutting speed, more intelligen;
● Supports two optional configurations of high brightness circular spot and Gaussian spot;
● Circular spot: Oxygen cutting is more stable, heat is more dispersed, and average;
● Gaussian spot: Air/nitrogen cutting speed is faster, heat is concentrated;
● Double spot is mainly aimed at cutting medium and thick plates, improving cutting speed and cutting section quality;
MPS-CA
Working Area [mm]
Positioning Accuracy （X/Y）
Repeatability（X/Y）
Max. Positioning Speed (X/Y)
Max. Acceleration (X/Y)
Available laser power
Dimensions (LxWxH)
3000mm×1500mm
±0.05mm
± 0.03mm
120m/min
1.2G
1500w ⁄ 2000w ⁄ 3000w ⁄ 6000w (optional)
8380mm×2220mm×2270mm
4000mm×2000mm
±0.05mm
± 0.03mm
120m/min
1.2G
1500w ⁄ 2000w ⁄ 3000w ⁄ 6000w (optional)
10700mm×3420mm×2000mm
6000mm×2000mm
±0.05mm
± 0.03mm
120m/min
1.2G
1500w ⁄ 2000w ⁄ 3000w ⁄ 6000w (optional)
14000mm×3420mm×2000mm
