G-J Series
Cutting Costs, Maximizing Efficiency Available Format:3-12meters Available Power:2kW-20kW
G-J Series Technical Data Sample
Fill for download or contact us
G3015-J

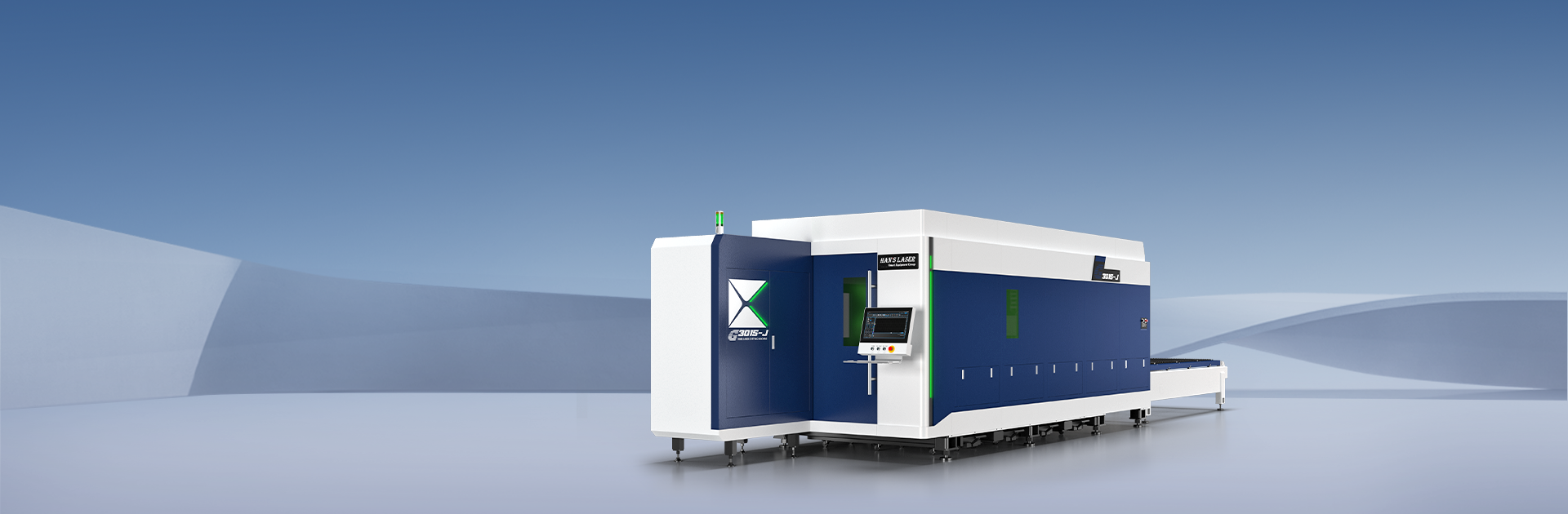

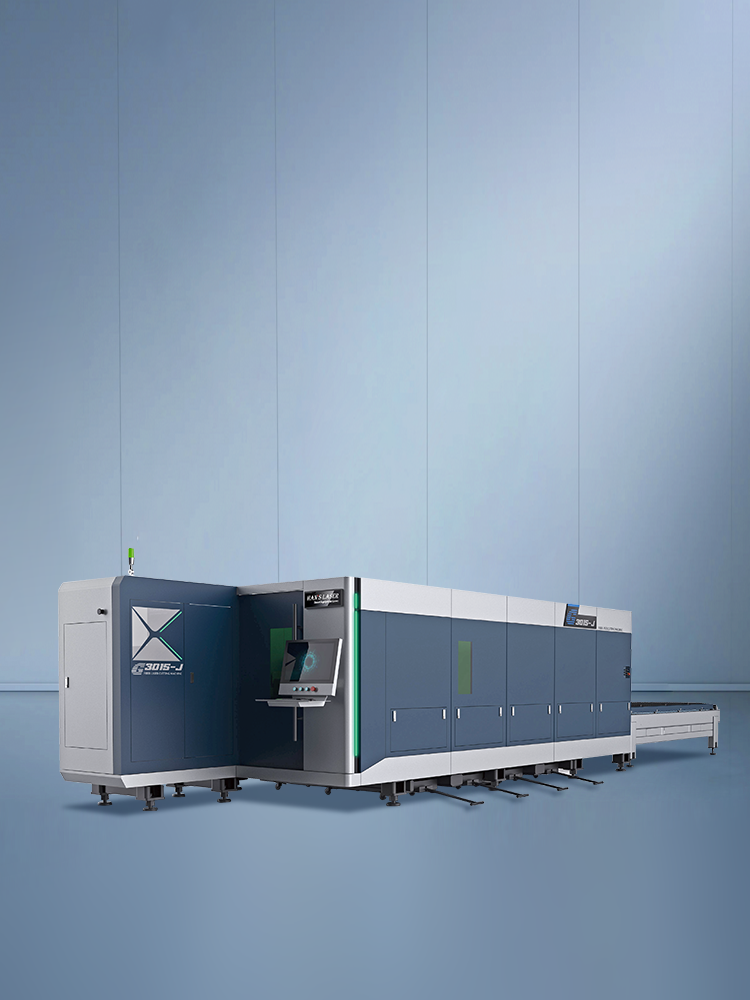

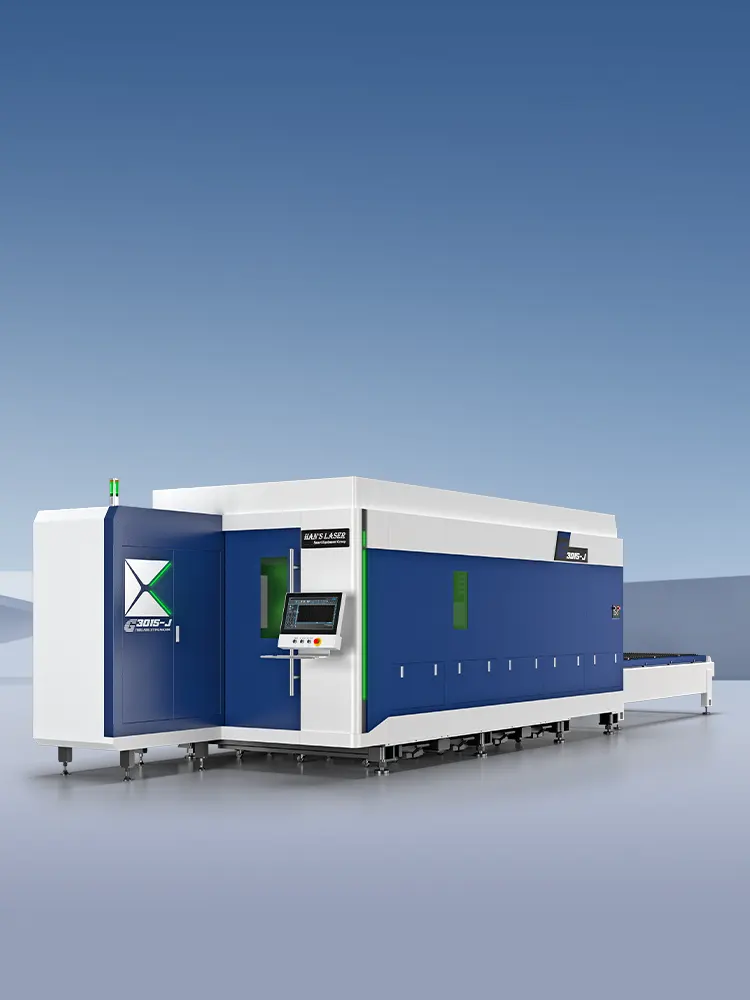

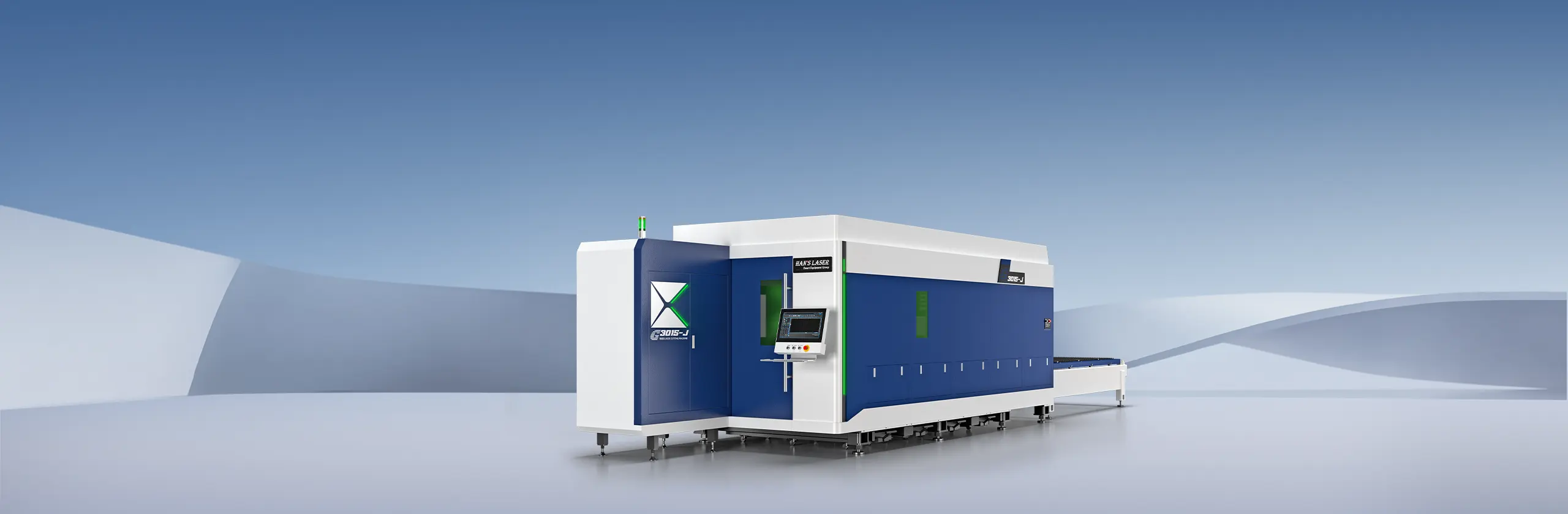

G3015-J Double Exchange Workbench Fiber Laser Cutting Machine
The G3015-J fiber laser cutting machine adopts the gantry double-drive structure. The whole bed is welded and formed by carbon steel and annealed. The beam is formed and heat-treated by high-strength materials. It is processed by other processes to achieve extremely high geometric tolerance accuracy.

Space Magician 40GP Less Occupation

The cabinet is integrated with the machine,occupies little space,is flexible in placement,easy to install and maintain,   effectively improves the utilization rate of the production space,and the packaging and transportation only use 40GP, effectively reducing the operation cost.

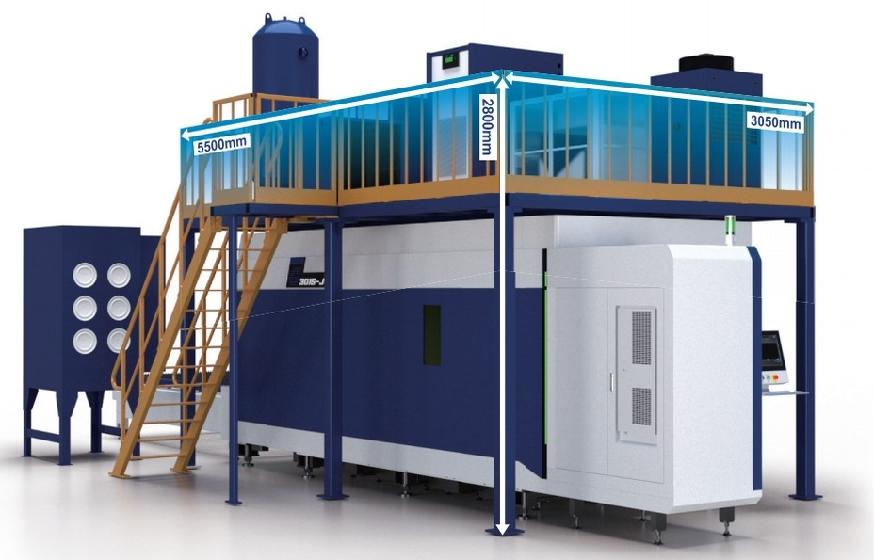

Small Footprint and High Space Utilization

It can adopt loft layout to improve space utilization

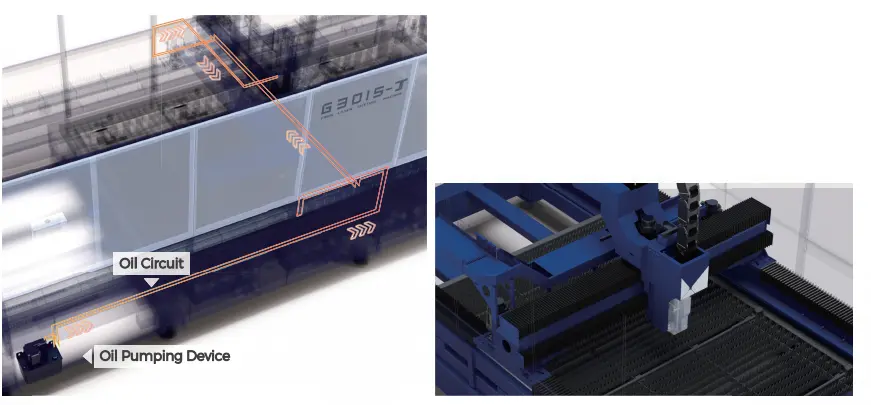

Automatic Oil Pumping

Simplify maintenance procedures;
Extend machine life;
Maintain machine precision;

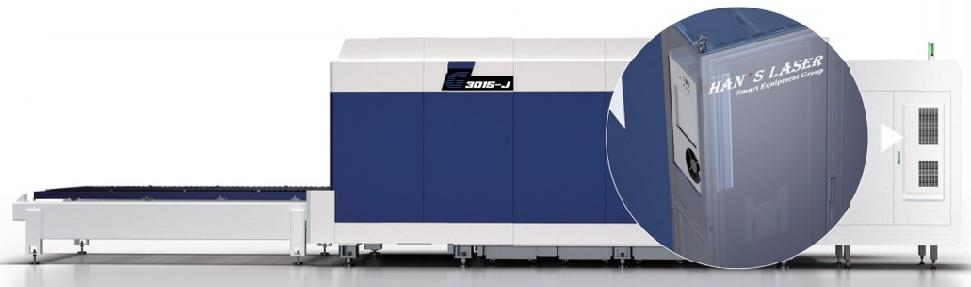

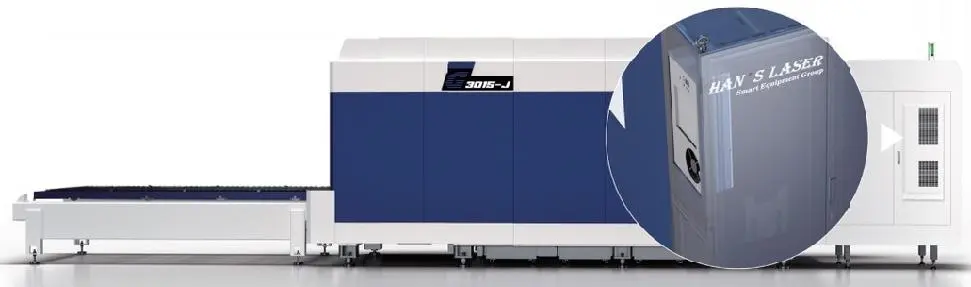

Integrated Cabinet Industrial Grade Air Conditioner

Reduce the risk of short circuits;
Ensure safety during long working hours;

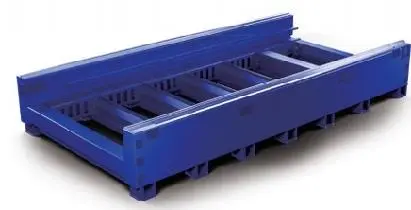

Rigid and Sturdy Structure

Annealing to relieve stress and ensure the stability of the bed ;
Hollow bed effectively reduces thermal effects;

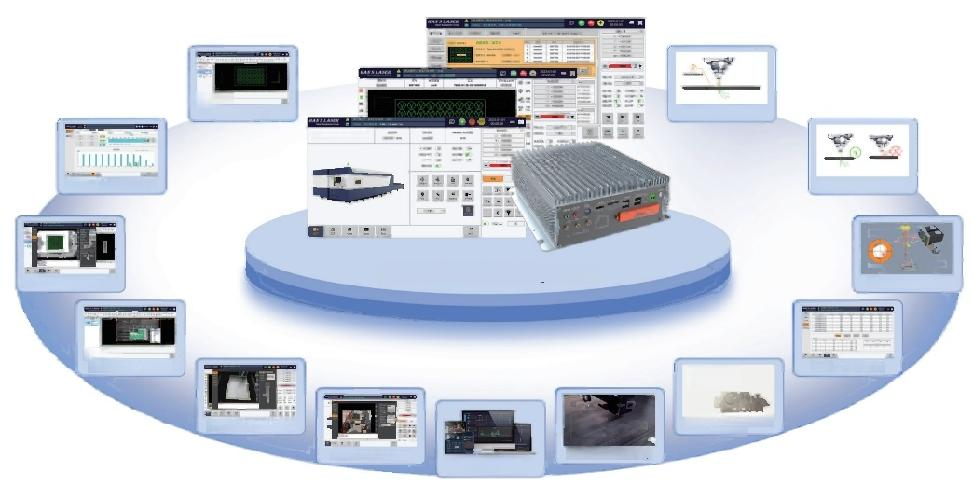

Independently developed system

Special functions required by customers can be customized;
Remote assistance to solve problems;
System version upgrade only requires software upgrade,no need to replace hardware;

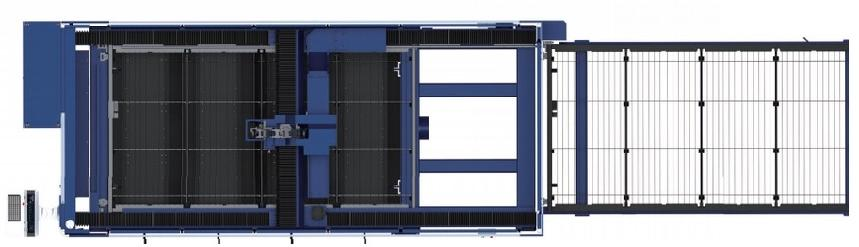

Larger cutting area

Increase cutting area to accommodate inch-gauge boards.

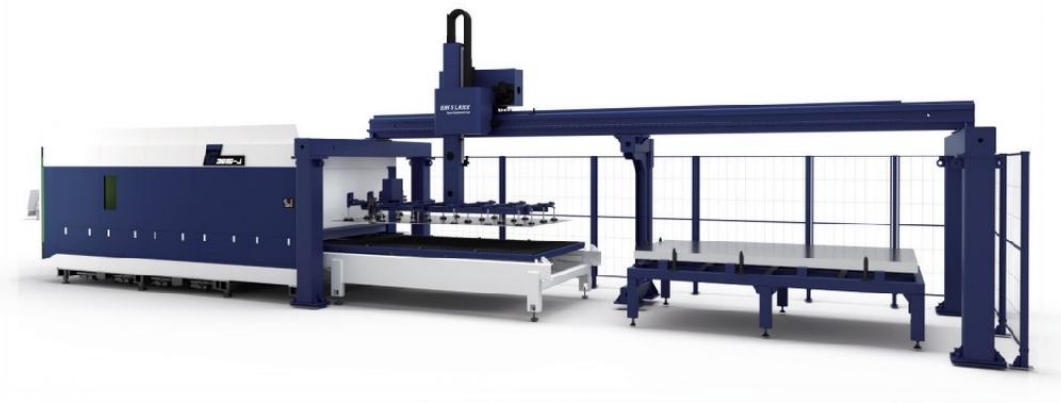

Simplified Version of Loading

Paired with the simple version of loading,it can save labor costs and shorten loading time.

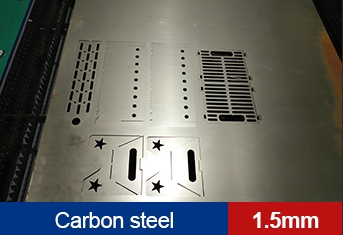

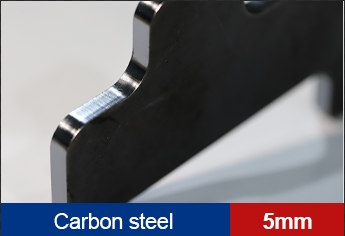

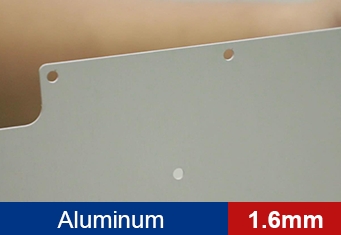

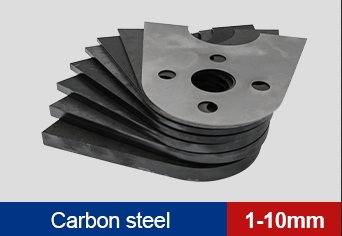

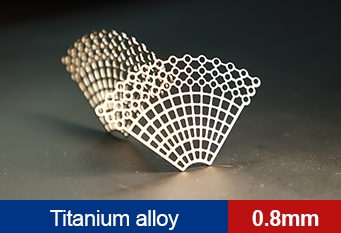

Cutting Capacity
Technical Data Sample

G-J Series

Laser Source Power

Working Area

Positioning Accuracy (X/Y)

Repeatability(X/Y)

Max. Positioning Speed (X/Y)

Max. Acceleration (X/Y)

Electrical Requirement

Dimensions (LxWxH)

2kW-20kW (optional)

3000mm×1500mm

± 0.05mm

± 0.03mm

120m/min

1.6G

3phase / 380V / 60Hz

9000mm×2300mm×2200mm
