MPS-DA

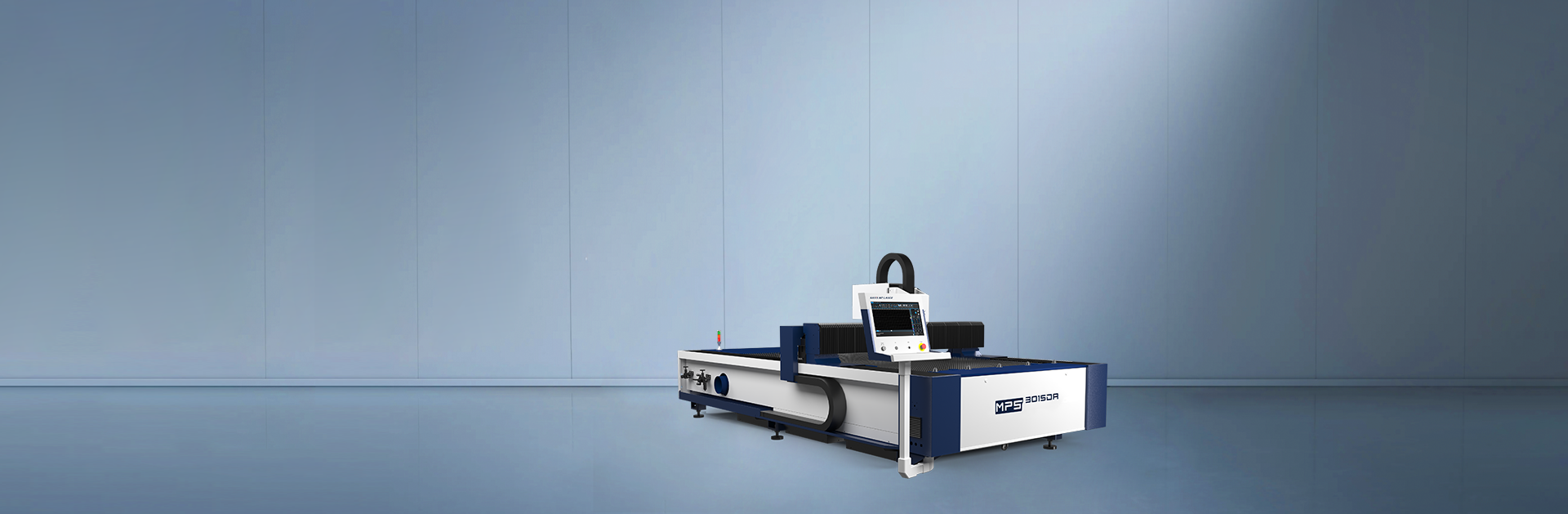

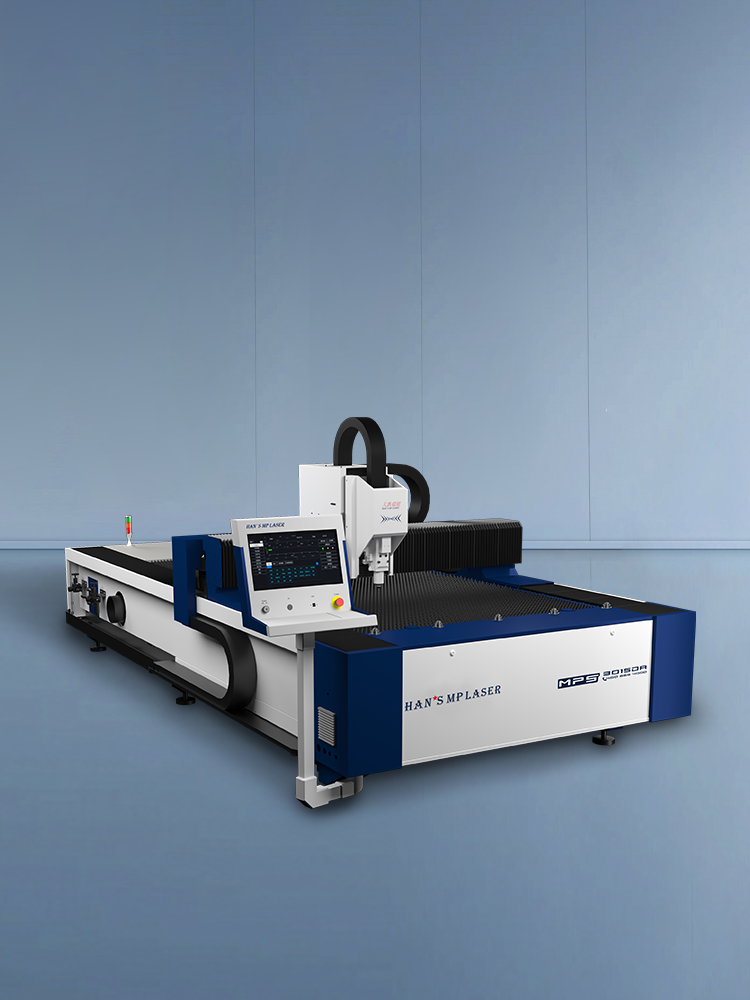

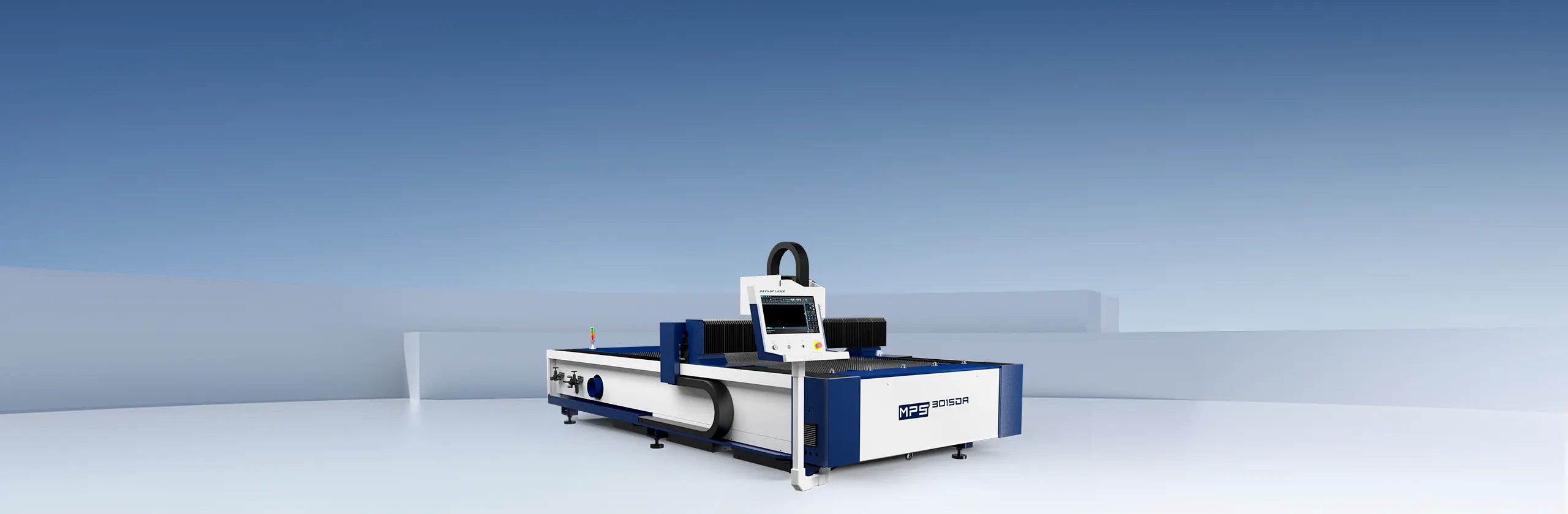

Fiber Laser Cutting Machine with Intuitive Design 3015 ⁄ 4020 ⁄ 6020 ⁄ 6025 ⁄ 8025 ⁄ 13025 Available power: 1500W ⁄ 2kW ⁄ 3kW ⁄ 6kW ⁄ 12kW
MPS-DA Technical Data Sample
Fill for download or contact us
Overview
Low Operating Costs and High Productivity
The MPS-DA series is an open type fiber laser cutting equipment tailored for the sheet metal processing in-dustry by Han's Laser. lt has the advantages ofstable performance, high efficiency, energy saving, andhigh cost performance; Low gas consumption by precision control, to ensure the low running cost, 3 kinds of auxiliary gas can be choose freely.

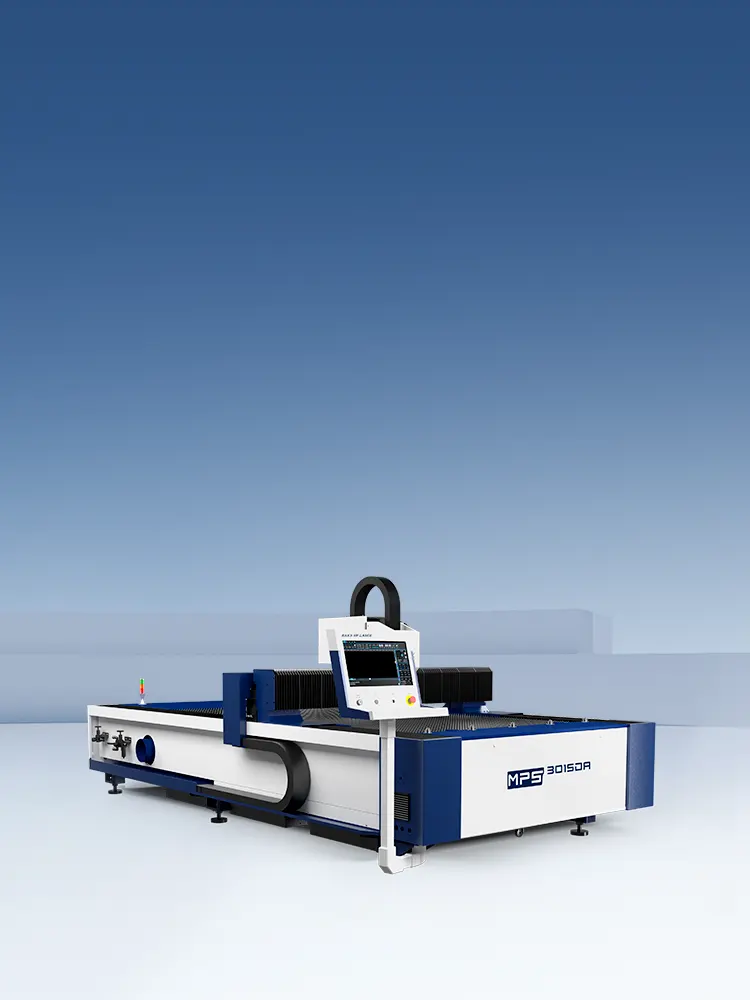

Intuitive Design

Thanks to intuitive design without cover, showing the cutting processing by laser completely!



● Loading/unloading for variety of small piece turn to be easy;



● Shorter response times for Demo-cut.

High Efficiency

Equipped with high torque servo motor and high precision imported reducer, favorable dynamic characteristics;

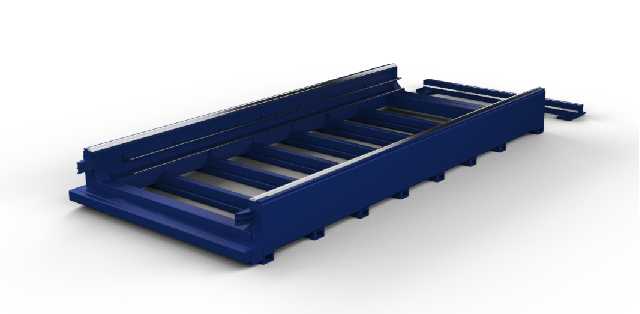

Honeycomb high-strength beams, can meet the requirements of high speed, high precision, high quality and high productivity.

High Stability

The main bed is welded with high-quality steel, stress relief annealing after welding and secondary aging treatment after semi-finishing effectively ensures that the bed will not deform during long-term use and has excellent shock resistance, rigidity and stability.



Both sides of the bed are vacuumed to remove dust generated by cutting in  time, making it clean and environmentally friendly.

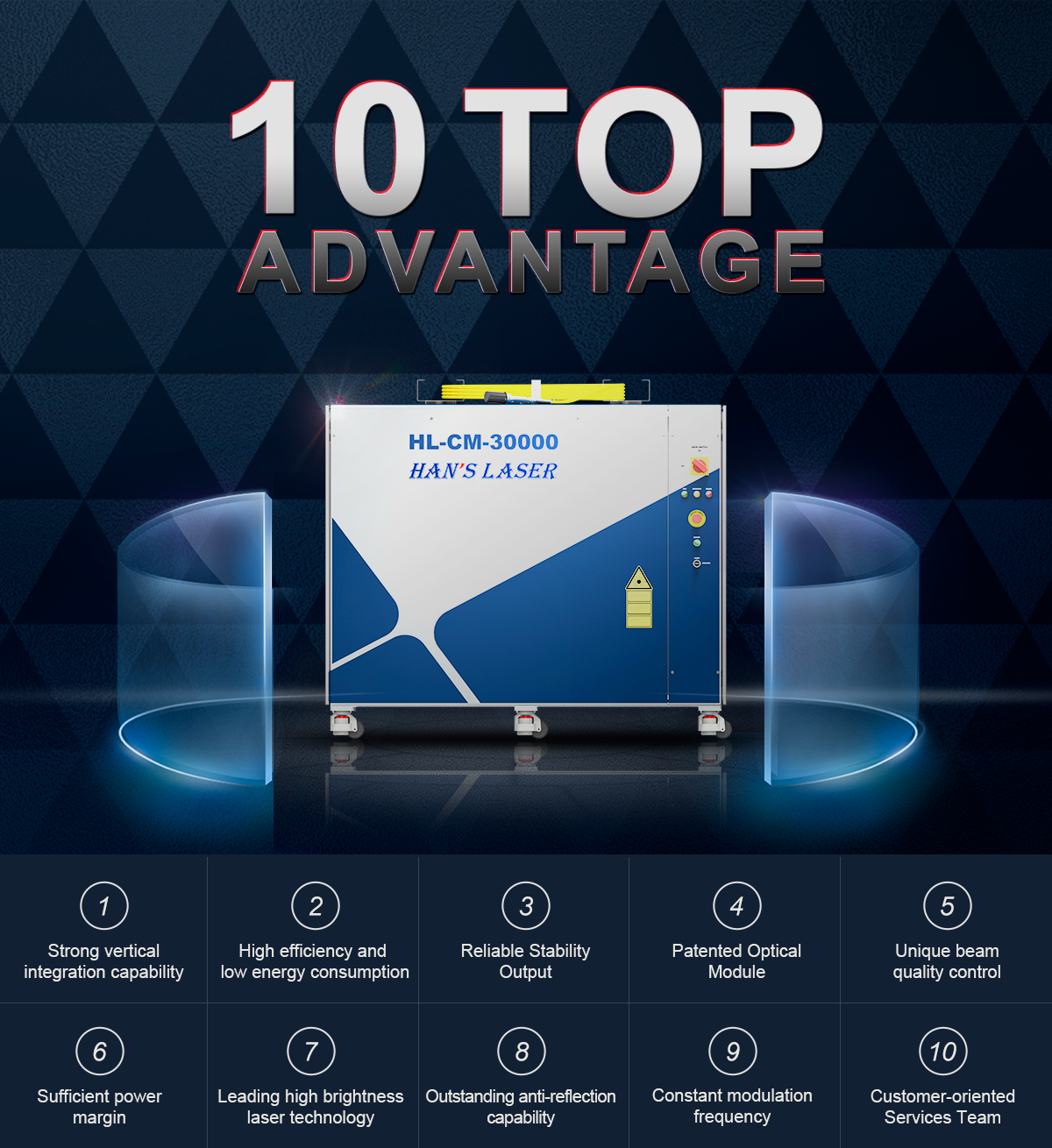

Extremely Anti-High-Reflection Ability

● Electro-optical conversion efficiency over 30%, energy stability, pump source lifetime about 100,000 hours;
● It has strong anti-high-reflection ability and can cut copper with high-pressure nitrogen and can cut stably for a long time;
● The power output is stable ±1%, using phosphorus-doped gain fiber without attenuation. There is no power attenuation caused by photon darkening effect, and the full power fluctuation is less than ±1%;

Extra-Long Service Life

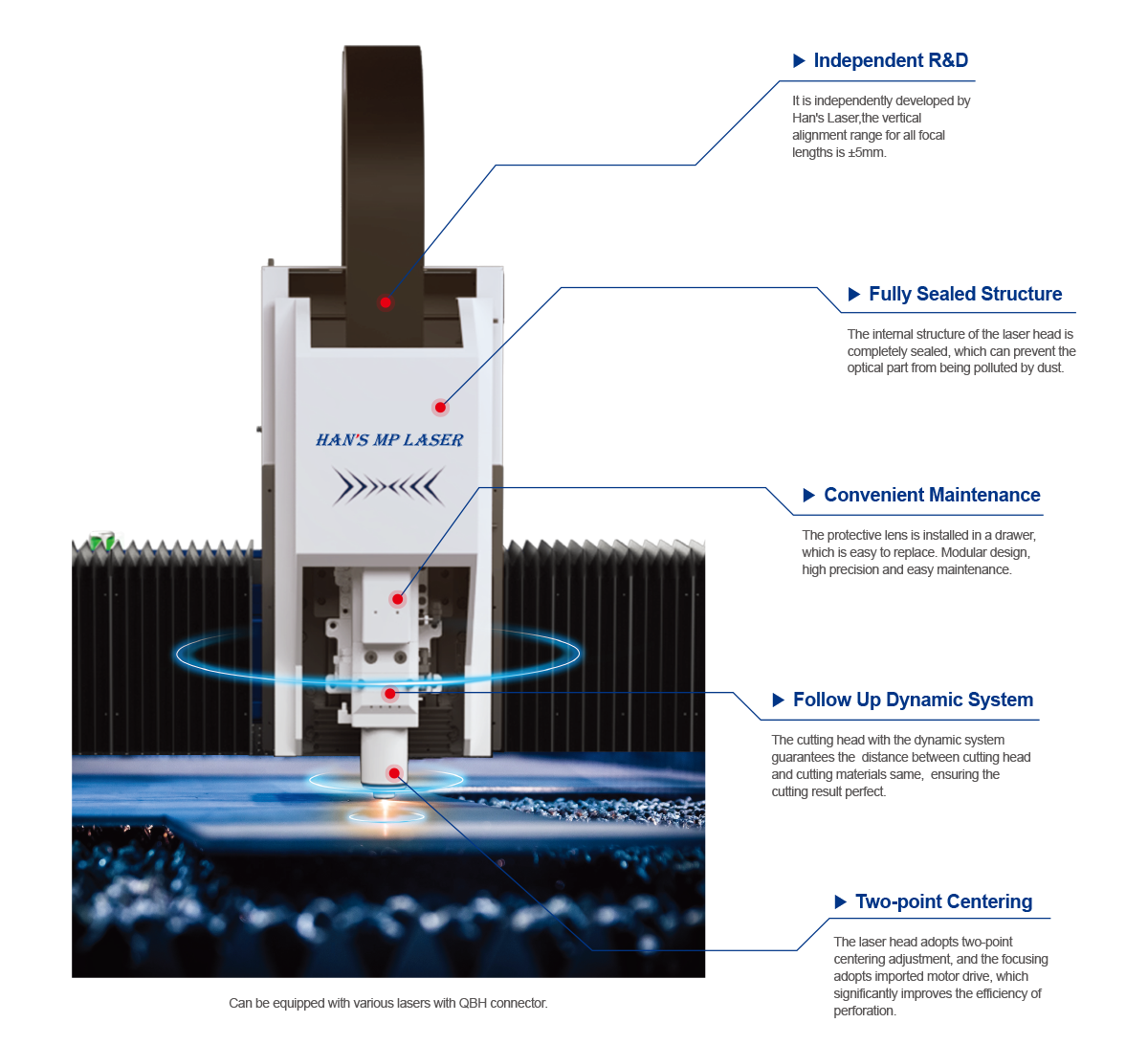

The internal structure of the laser head is completely sealed to prevent dust contamination of the optical part, adopts two-point centering adjustment, and the focus is driven by a servo motor, which significantly improves the efficiency of perforation.



The protective lens is installed in a drawer and is easy to replace.



It can be equipped with various lasers with QBH connectors.

Easy to use and program

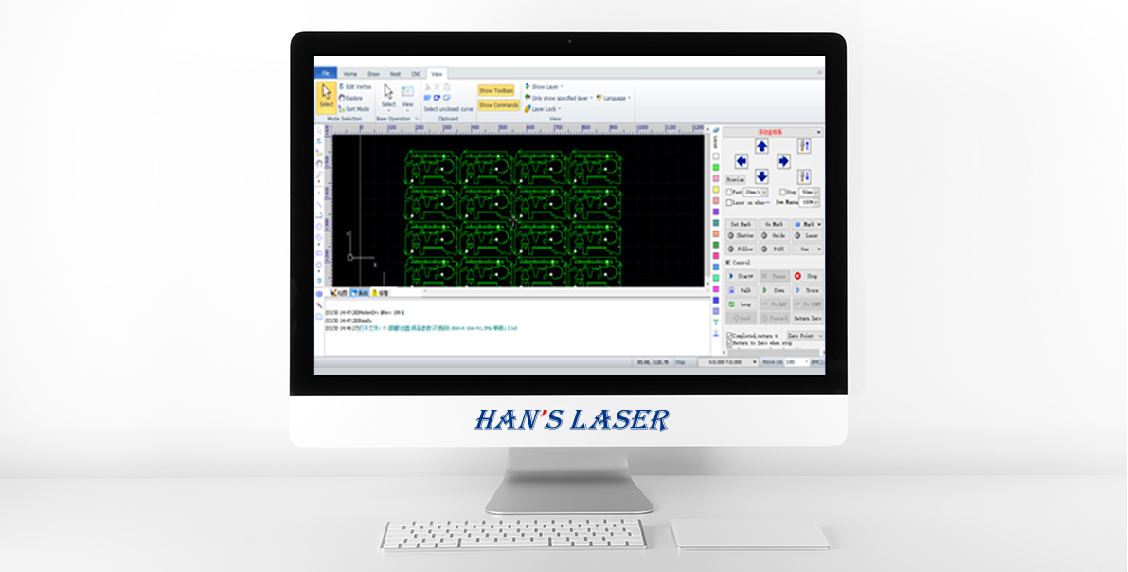

New control system of FSCUT is a full-featured bus control system specially launched for the sheet metal processing industry. It is easy to install, easy to debug, has excellent performance and complete solutions. It is a fiber laser cutting control system with a high market share at present.

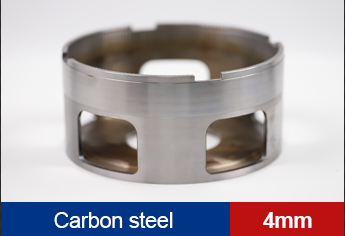

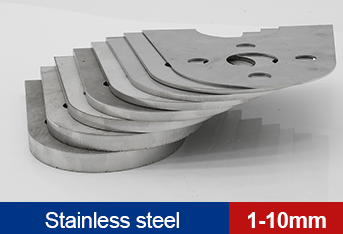

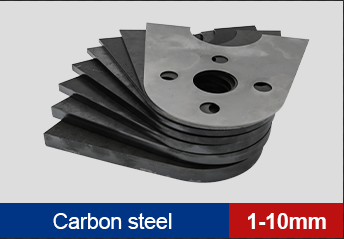

Cutting Capacity
Technical Data Sample

MPS-DA

Working Area [mm]

Maximum positioning speed (X/Y)

Max.Acceleration

Positioning Accuracy (X/Y)

Repeatability(X/Y)

Dimensions (LxWxH)

Laser power

3000mm×1500mm

120m/min

1.2G

±0.05mm

0.03mm

5000mm×2300mm×1900mm

1500w-12000w (optional)

4000mm×2000mm

100m/min

1.0G

±0.05mm

0.03mm

6000mm×2800mm×1900mm

1500w-12000w (optional)

6000mm×2500mm

100m/min

1.0G

±0.05mm

0.03mm

8500mm×4200mm×2400mm

1500w-12000w (optional)

8000mm×2500mm

100m/min

1.0G

±0.05mm

0.03mm

10500mm×4200mm×2400mm

1500w-12000w (optional)

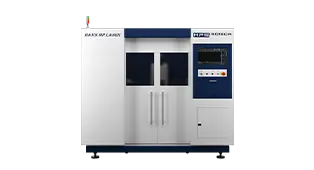

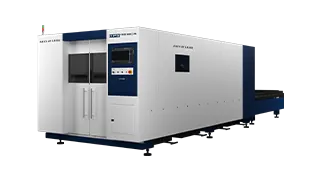

Recommended Products
