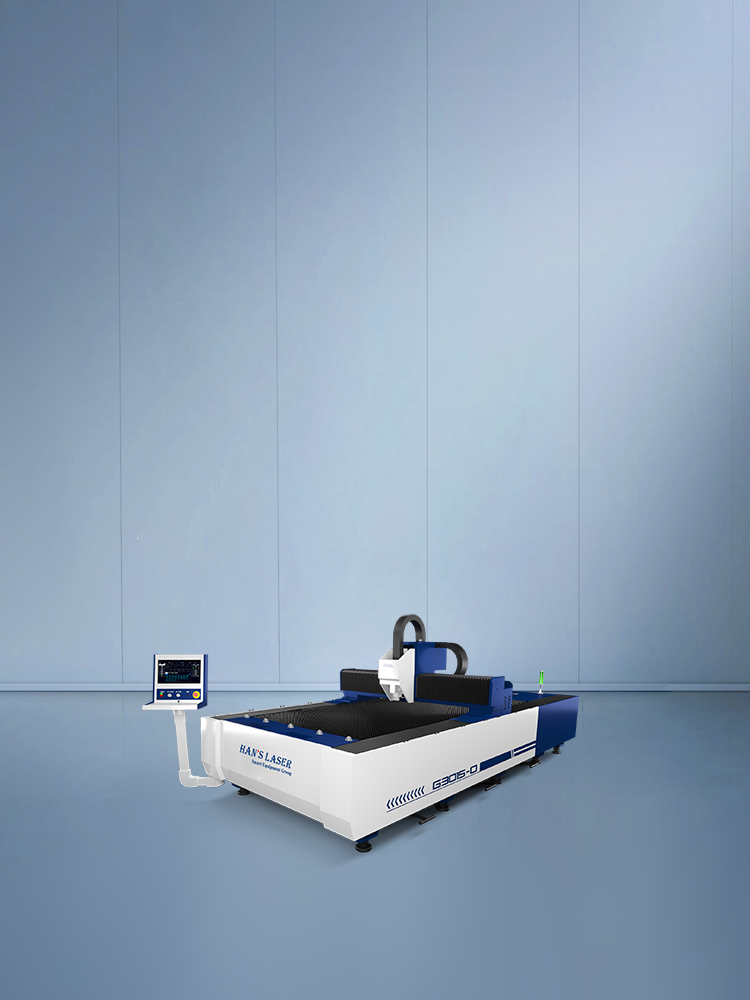

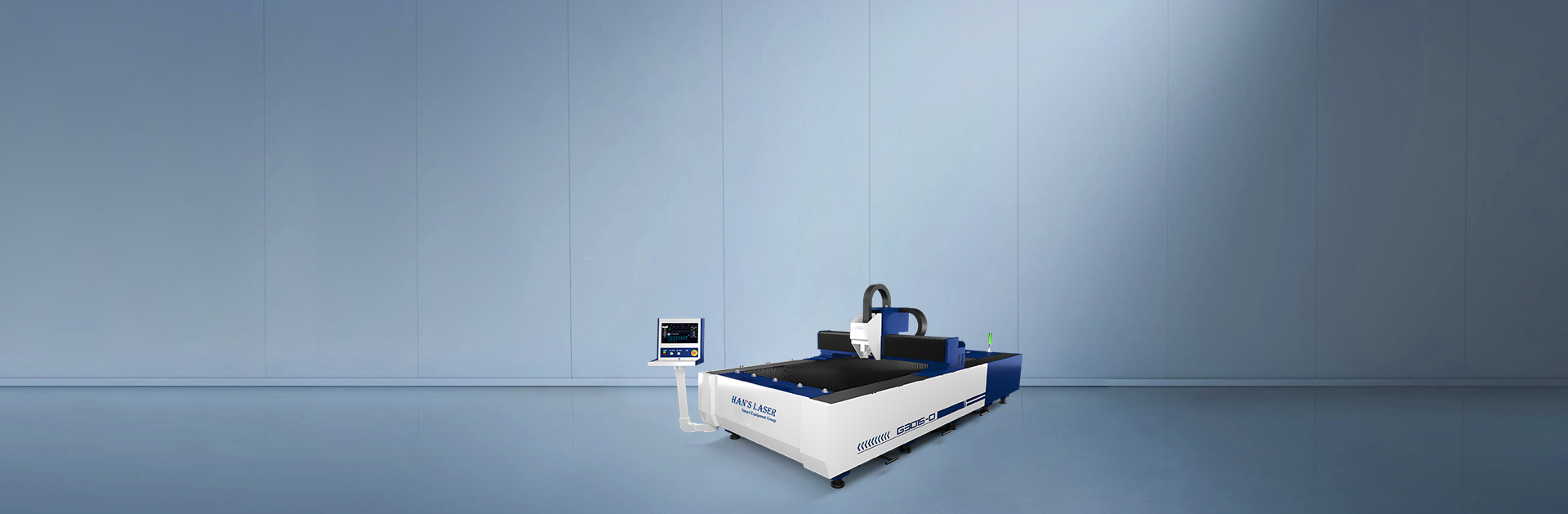

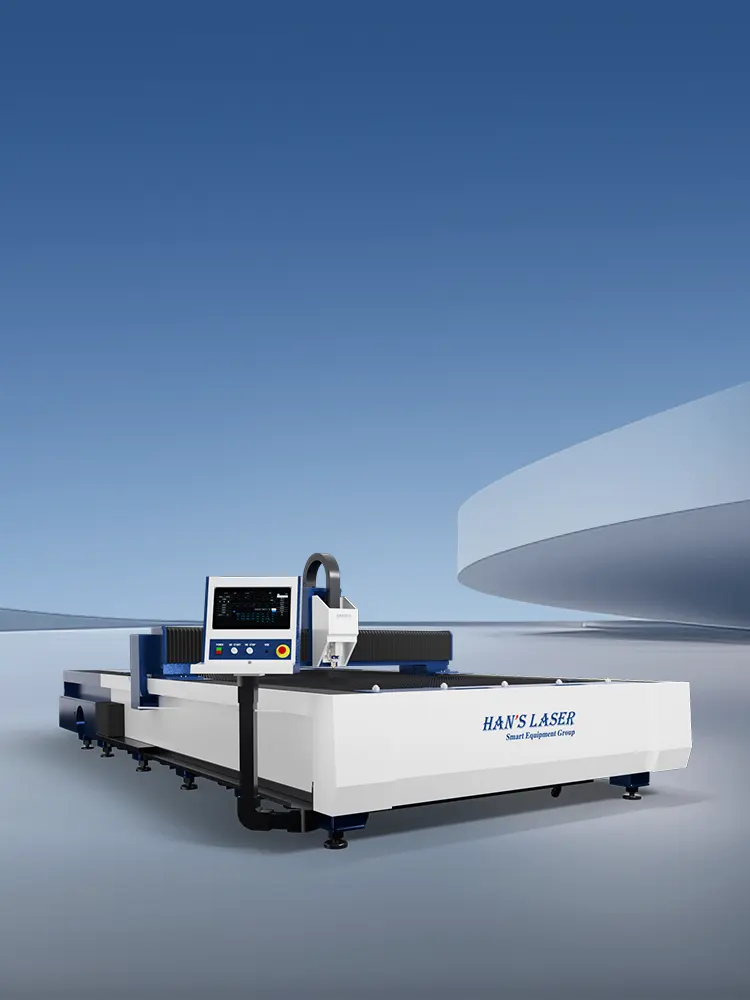

G-O Series

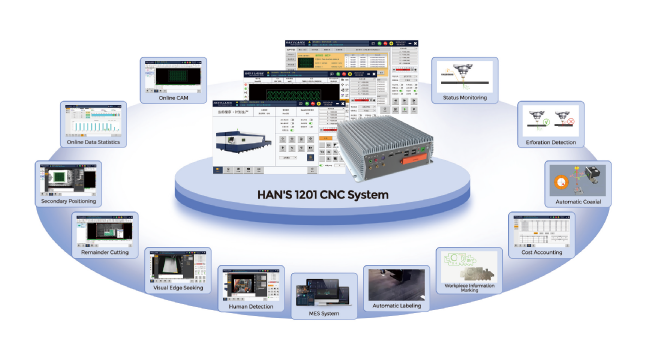

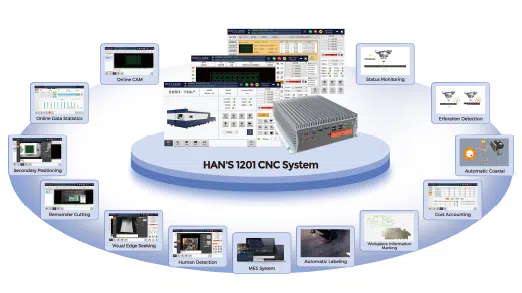

Metal Laser Cutting Machine Available Power: 3kW-20kW •Compact Design •Safe and Reliable Structure •HAN'S CNC System
G-O Series Technical Data Sample
Fill for download or contact us
Overview
Good Rigidity and High Precision
The G-O series fiber laser cutting machine features a gantry double-drive structure for stability and durability, a high-strength aluminum beam for speed and reliability, a matrix air extraction system for effective dust removal, and a new bus system that boosts cutting efficiency by over 20%.

Space Design is More Compact

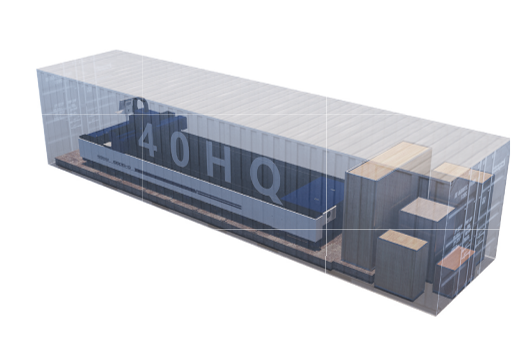

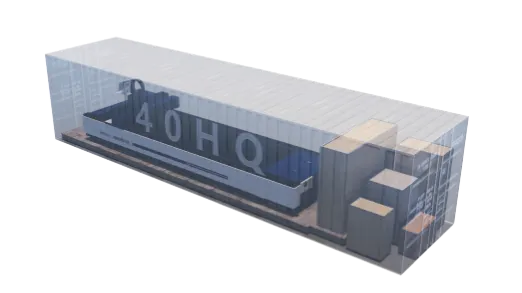

The box is integrated with the machine, takes up little space, is flexible in placement, easy to install and maintain, and effectively improves the utilization of production space. G3015-O and G6020-O Only 40HQ is used for packaging and transportation, which effectively reduces operating costs.

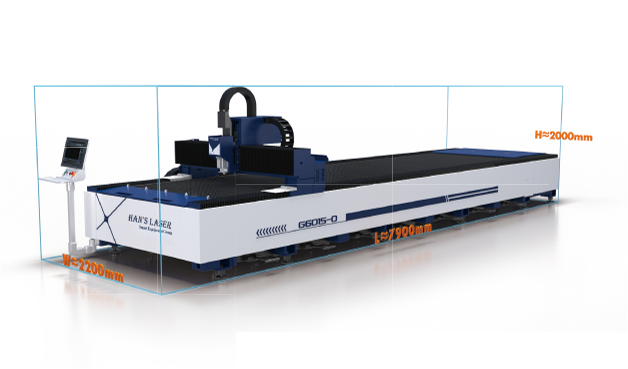

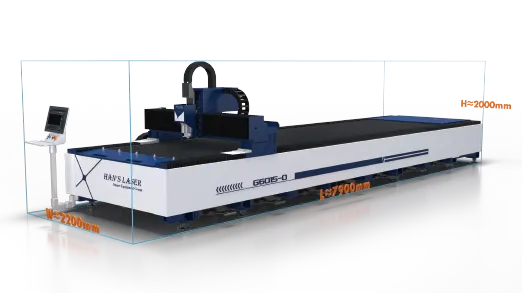

Small Floor Space and High Space Utilization

Optimize the customer's small site to improve space utilization.



Integrated Cabinet Industrial Grade Air Conditioner

Reduce the risk of short circuits;
Ensure safety during long working hours;

Environment Friendly

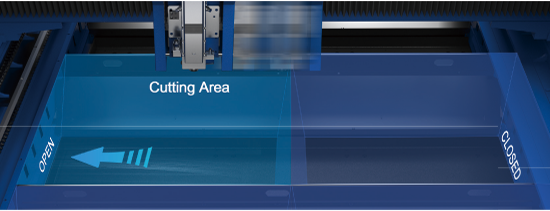

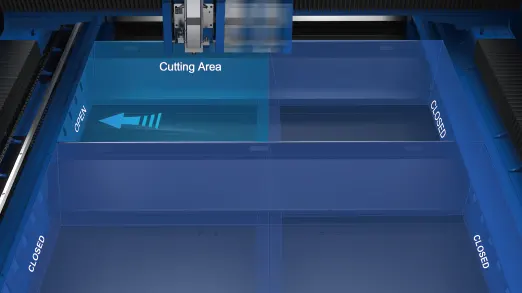

The dust removal area is equipped with multiple high-sealing dampers, which intelligently open and close automatically and efficiently following the cutting work, and the ventilation and dust removal effect is good.

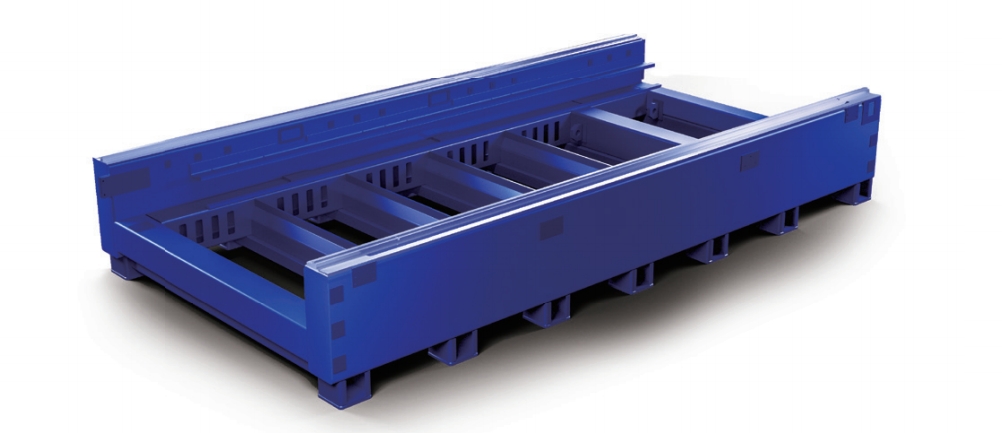

Sturdy Construction

Annealing eliminates stress and ensures bed stability;
Hollow lathe bed effectively reduces thermal effects;

Fully Automatic Solution

Strong technical support and many project experience , offer various automation solution according to customer requirements.

Automatic Oil Pump

Simplify maintenance procedures;
Extend machine life;
Maintain machine accuracy;

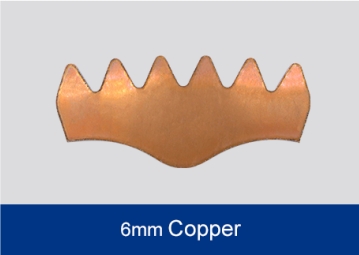

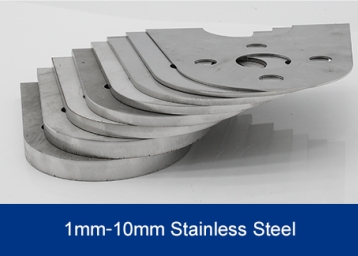

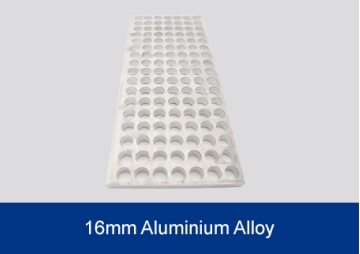

Cutting Capacity
Technical Data Sample
* For reference only, all data shall be subject to actual technical documents.

G-O Series

Working Area [mm]

Max.axis positioning speed(X/Y)

Max.acceleration

Precision

Repetitiveness

Max load of work table

Available laser power

3000mm×1500mm

120m ⁄ min

1.5G

±0.05mm

±0.03mm

1000kg

3kW ⁄ 6kW ⁄ 12kW ⁄ 15kW ⁄ 20kW

4000mm×2000mm

120m ⁄ min

1.5G

±0.05mm

±0.03mm

1600kg

3kW ⁄ 6kW ⁄ 12kW ⁄ 15kW ⁄ 20kW

6000mm×1500mm

120m ⁄ min

1.5G

±0.05mm

±0.03mm

2400kg

3kW ⁄ 6kW ⁄ 12kW ⁄ 15kW ⁄ 20kW

6000mm×2000mm

120m ⁄ min

1.5G

±0.05mm

±0.03mm

2400kg

3kW ⁄ 6kW ⁄ 12kW ⁄ 15kW ⁄ 20kW

6000mm×2500mm

120m ⁄ min

1.5G

±0.05mm

±0.03mm

2400kg

3kW ⁄ 6kW ⁄ 12kW ⁄ 15kW ⁄ 20kW
