H Beam laser cutter
H12560BF ⁄ LBF Cutting range:H Beam 1250mm × 600mm Available power: 6kW ⁄ 12kW ⁄ 20kW ⁄ 30kW ⁄ 40kW ⁄ 50kW ⁄ 60kW

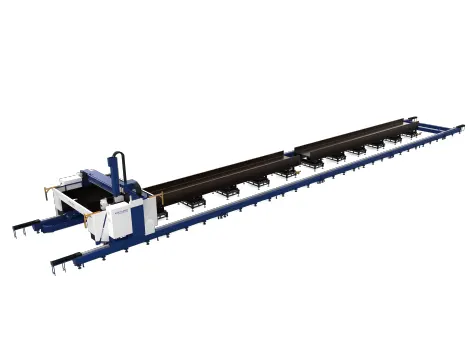

H Beam laser cutter Moving-Gantry (Optional)Technical Data Sample
Fill for download or contact us
Overview

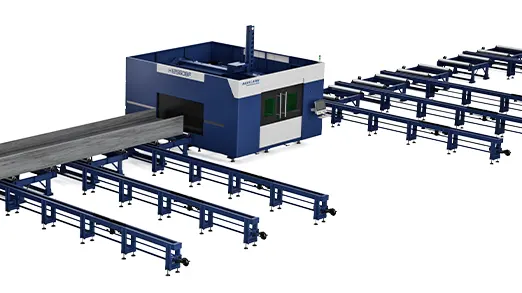

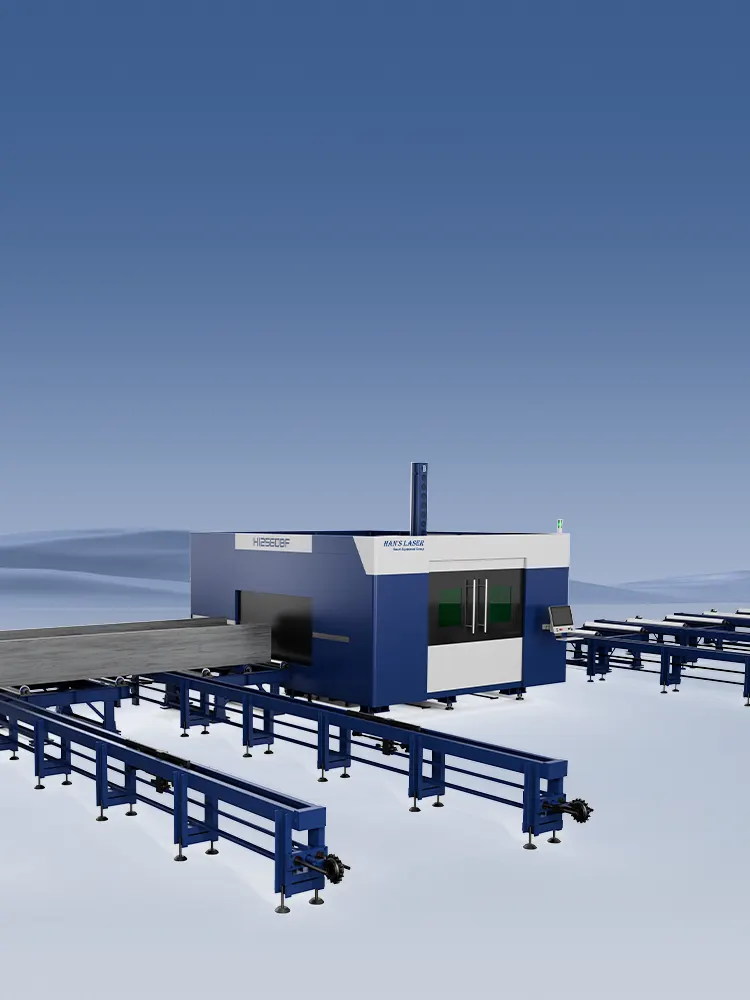

H Beam Laser Cutting Machine with Automatic Loading & Unloading System
Locking edge are smooth and do not require additional grinding or shaping. High precision and low thermal distortion, No touch-up is required.

Unmatched Automation

Fully Automatic Loading & Unloading, ensuring continuity and minimizing operator dependence.
● Support automatic loading and unloading of multiple H-beams;
● Implement zero tailings cutting with any port and graphic.

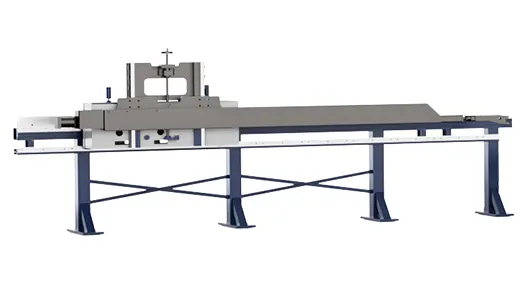

Clamping and Servo Feed-in

The feeding clamp quickly approaches the section steel, and after detecting the workpiece through the detection switch on the clamp, clamps and limits the H-beam to ensure accuracy and stability during cutting.

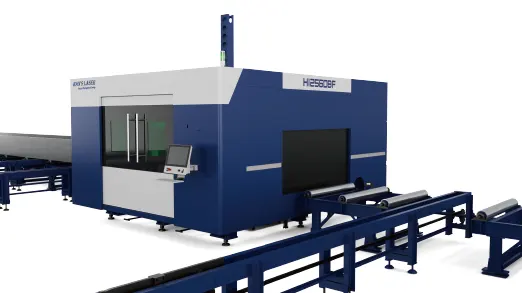

Laser Safety

Fully Enclosed Cutting Environment

Equipped with thickened sheet metal protective cover, laser protection level is high to ensure production safety;

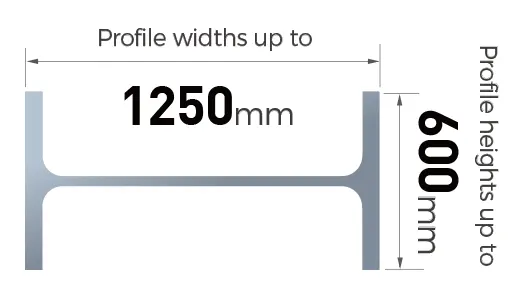

Wide Processing Range

● Profile widths up to 1250mm;
● Profile heights up to 600mm;

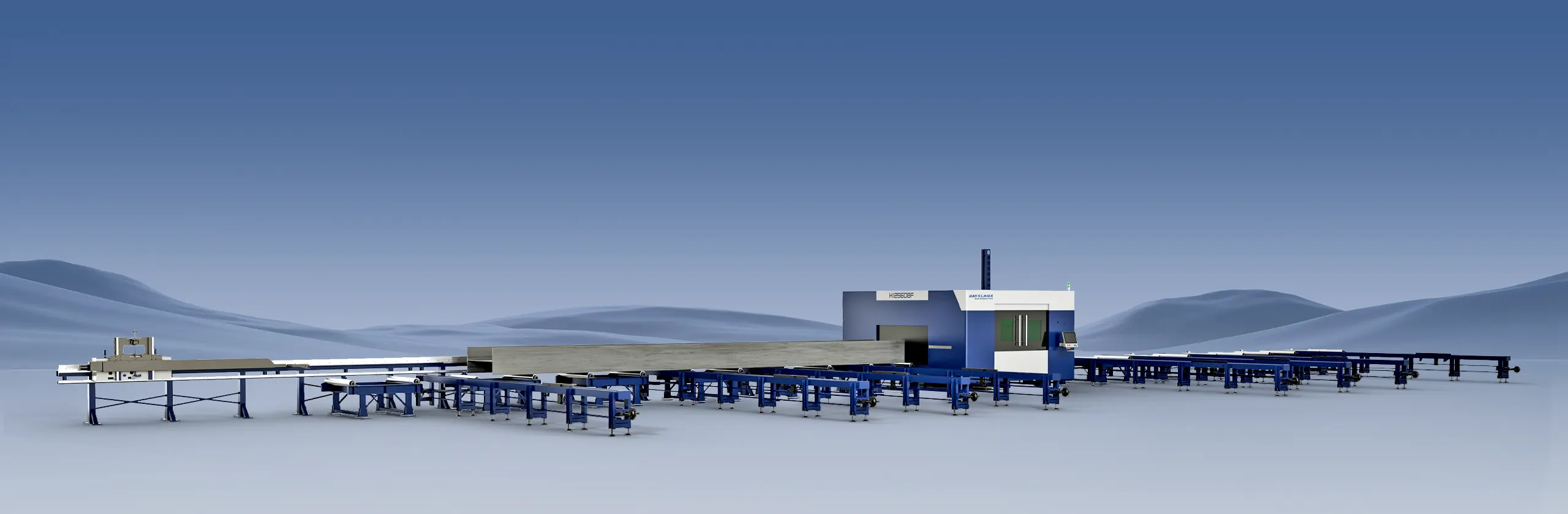

● Supports up to 12 meters of entire H-steel for loading, cutting, and unloading.

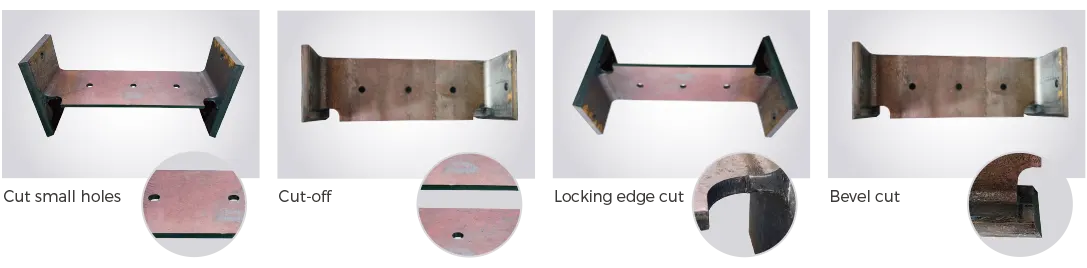

High-quality Results

Subvert Traditional Cutting Technology

 ● Copes are smooth and do not require additional grinding or shaping.

● Cutting off, bevel cut, locking edge cut, cut small holes can be done in one machine.

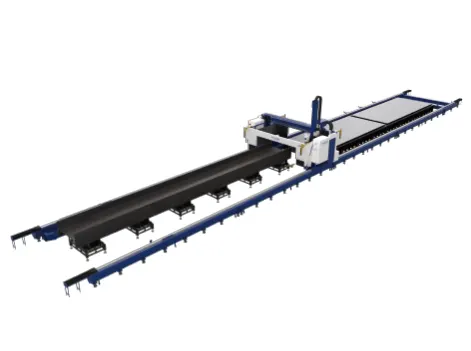

Moving-Gantry (Optional)
High-Productivity
Flexible Cutting
High-Productivity
Thanks to Two-Operating Position design, While cutting at Workstation-1, Workstation-2 can loading and unloading.
Flexible Cutting
Compatible with structural steel and plate cutting, designed to meet various production requirements.
Cutting Capacity
Technical Data Sample
* For reference only, all data shall be subject to actual technical documents.

H Beams Laser Cutter Series

Cutting range (H Beam)

Cutting range (Sheet Metal)

Loading length

Bevel cut angle

X, Y axis positioning accuracy

Repeat positioning accuracy

A , B axis positioning accuracy

Max. X, Y axis positioning speed

1250mm×600mm

26000mm×2500mm

12000mm

0-45°

±0.08mm

±0.08mm

±0.1°

40m/min
