WD Series
High-productivity 3D 5-axis Laser Cutting Machine 3015 ⁄ 3122 ⁄ 4025 Available power: 3000W ⁄ 4000W ⁄ 6000W
WD Series Technical Data Sample
Fill for download or contact us
Overview

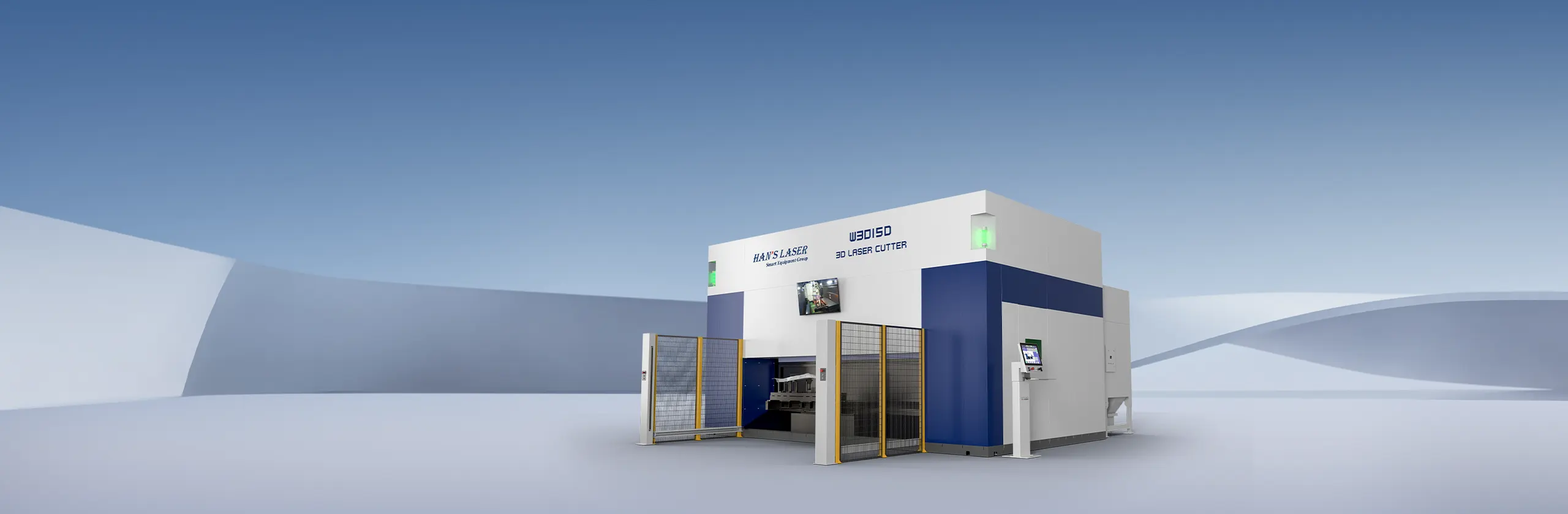

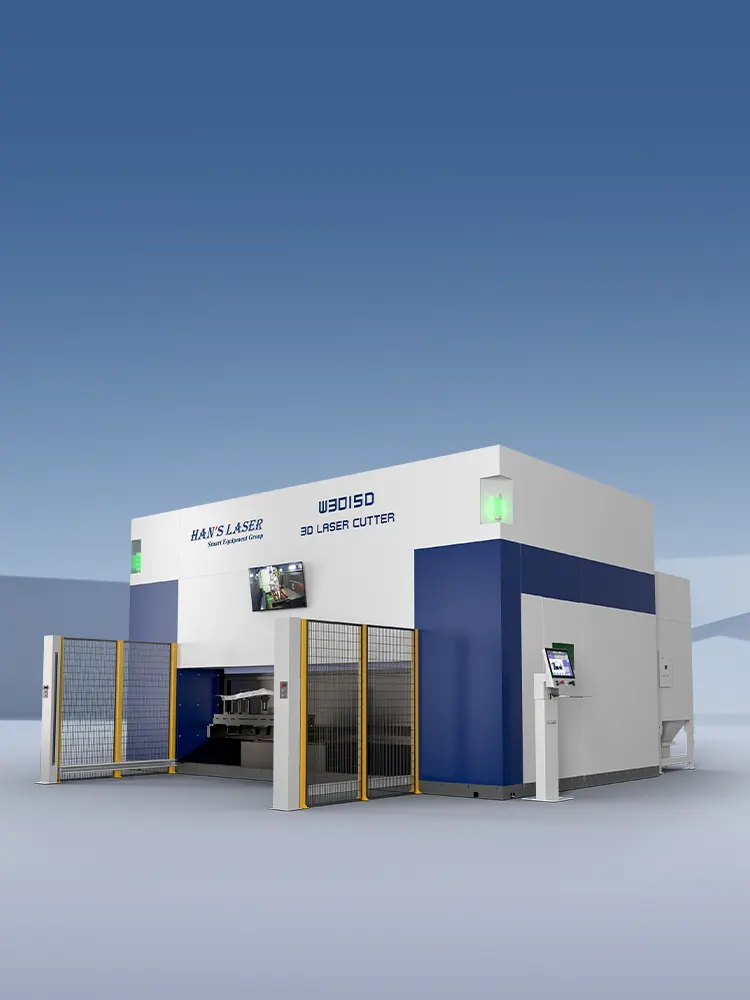

High-productivity 3D 5-axis Laser Cutting Machine for HOT-FORMED COMPONENTS
The WD series is a high-speed 3D 5-axis laser cutting machine with gantry beam moving structure, which is a high-end machine specialized in laser cutting of thermoformed 3D parts and 3D workpieces requiring high efficiency. It can be used for cutting high strength steel, ordinary carbon steel, stainless steel, titanium alloy, aluminum alloy and other materials.

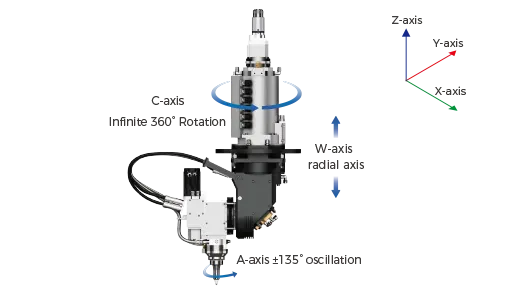

Han's 3D Cutting Head

Small size, light weight and high performance:

Perfect anti-collision performance, A-axis anti-collision mode, 360° anti-collision;
Stabilized electric slip ring process to enhance the slip ring's anti-interference ability and stability of use;
Highly sealed W-axis dustproof structure, longer service life of the lens in harsh environments, enhance equipment stability and reduce the cost of use;
Highly interference-resistant cables to enhance the stability of the cutting head in frequent movements.

Work Environment Friendly

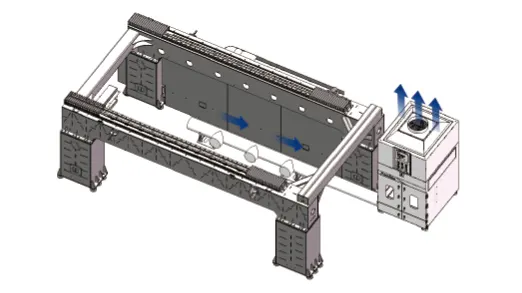

High-volume dust removal system
The dust collector is positioned close to the machine guard, and the dust collection pipe is directly connected to the internal air duct of the machine tool, with no bends to avoid resistance, ensuring optimal dust removal. This system protects the machine tool's critical precision parts from dust contamination and reduces cutting exhaust and dust in the working area, minimizing environmental pollution and harm to human health.

High Stability

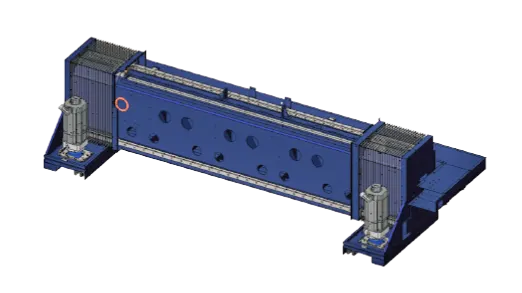

U-shaped base fixing structure.
Thanks to Han's Laser's unique U-shaped base fixing structure, the large cross-sectional area ensures the rigidity and stability of the machine bed.



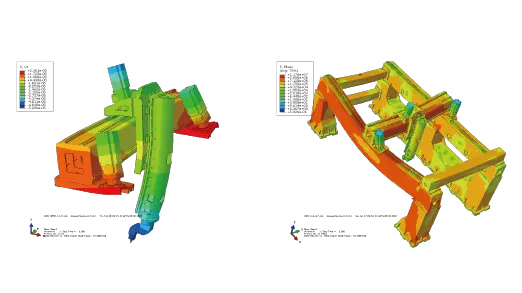

Design of the machine structure, complete analysis and secondary optimization by CAE, after the installation was completed, several tests were conducted on vibration frequency, modal and other static and dynamic performance, as well as a 72-hour continuous running test to ensure the reliability of the equipment for long-term operation.



Extremely Fast

Lightweight beams with increased rigidity and strength to improve the dynamic performance of moving parts;


Sealing plates are added around the dust cover to protect the transmission parts from contamination.

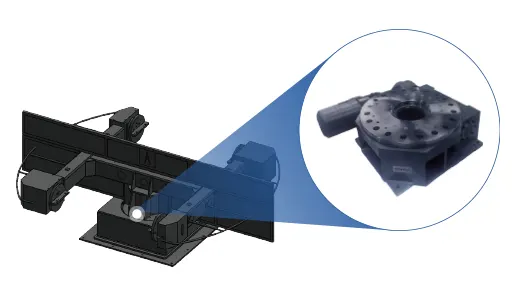

Duplex Rotary Table

Exchange by rotation, High-efficiency operation

A safety grating in the lowering area of the table ensures the safety of the operator;

Equipped with the Air Line Connection Block and Aviation Connector to ensure that the clamps can be connected properly.

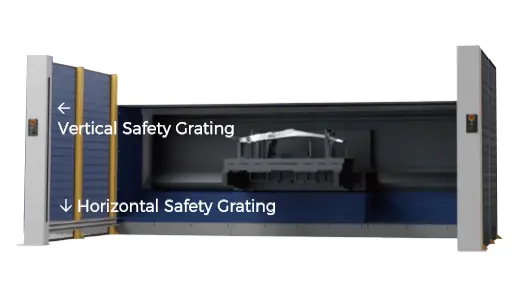

Dual Safety Protection

Ensure worker operation safety
Equipped with safety guardrail and safety grating to ensure the safety of personnel when loading and unloading workpieces.

Excellent Edge Control Processes

Burr-free Corner-cutting Function
The laser power follows the speed change, better control of the corner cutting process, to reach the corner cutting edge almost burr-free!

Cutting Capacity
Technical Data Sample
* For reference only, all data shall be subject to actual technical documents.

WD Series

Laser Source Power

X-axis itinerary

Y-axis itinerary

Z-axis itinerary

Single axis speed

accelaration

Location precision

Location precision

Rotation axis C axis

Oscillation axis A axis

CNC control system

Cutting head

Workbench

Workbench exchanging time

3000w ⁄ 4000w ⁄ 6000w (optional)

3000mm

1500mm

650mm

100m/min(X-axis can reach 120m/min)

1.0g(can reach1.2g)

±0.04mm

0.03mm

n*360°

±135°

Rexroth/Siemens

Han's latest cutting head

Rotation duel-station workbench

2.5s

3000w ⁄ 4000w ⁄ 6000w (optional)

3100mm

2200mm

650mm

100m/min(X-axis can reach 120m/min)

1.0g(can reach1.2g)

±0.04mm

0.03mm

n*360°

±135°

Rexroth/Siemens

Han's latest cutting head

Rotation duel-station workbench

4.5s

3000w ⁄ 4000w ⁄ 6000w (optional)

4000mm

2500mm

650mm

100m/min(X-axis can reach 120m/min)

1.0g(can reach1.2g)

±0.04mm

0.03mm

n*360°

±135°

Rexroth/Siemens

Han's latest cutting head

Rotation duel-station workbench

5.5s
