ALU Series Laser Automation Solution
Maximally "unmanned" production, lower man power; FMS smart control system; Deeply engaged control system, Self-diagnosis for better maintenance ; Modular installation, extended Interface.
ALU Series Laser Automation Solution Technical Data Sample
Fill for download or contact us

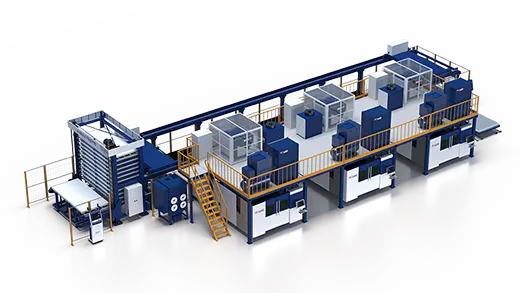

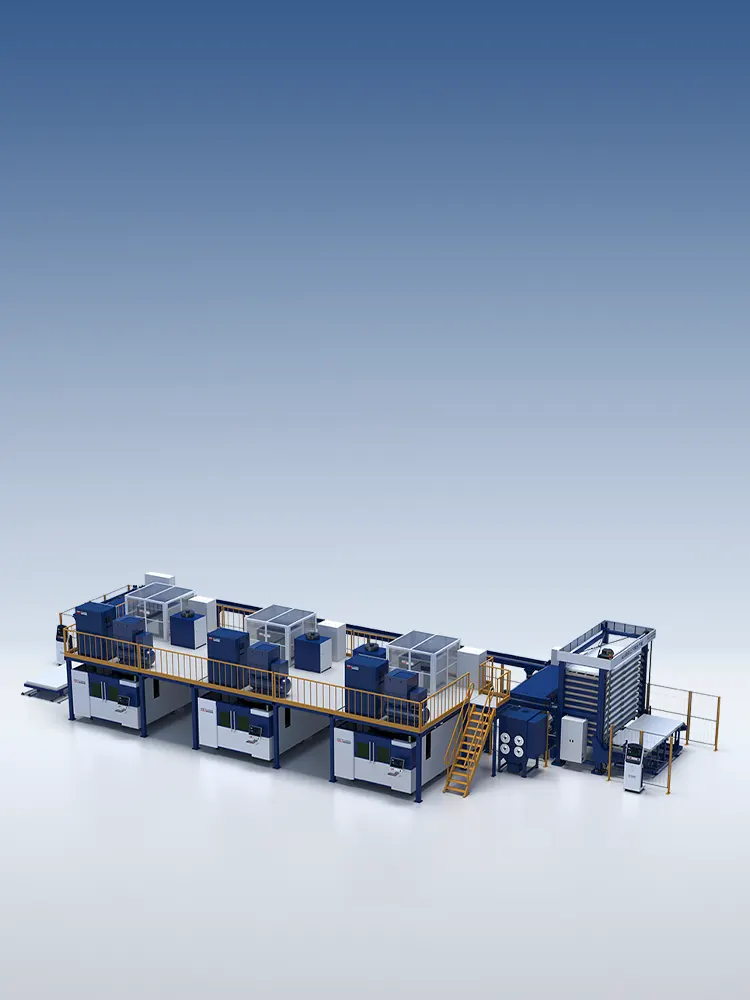

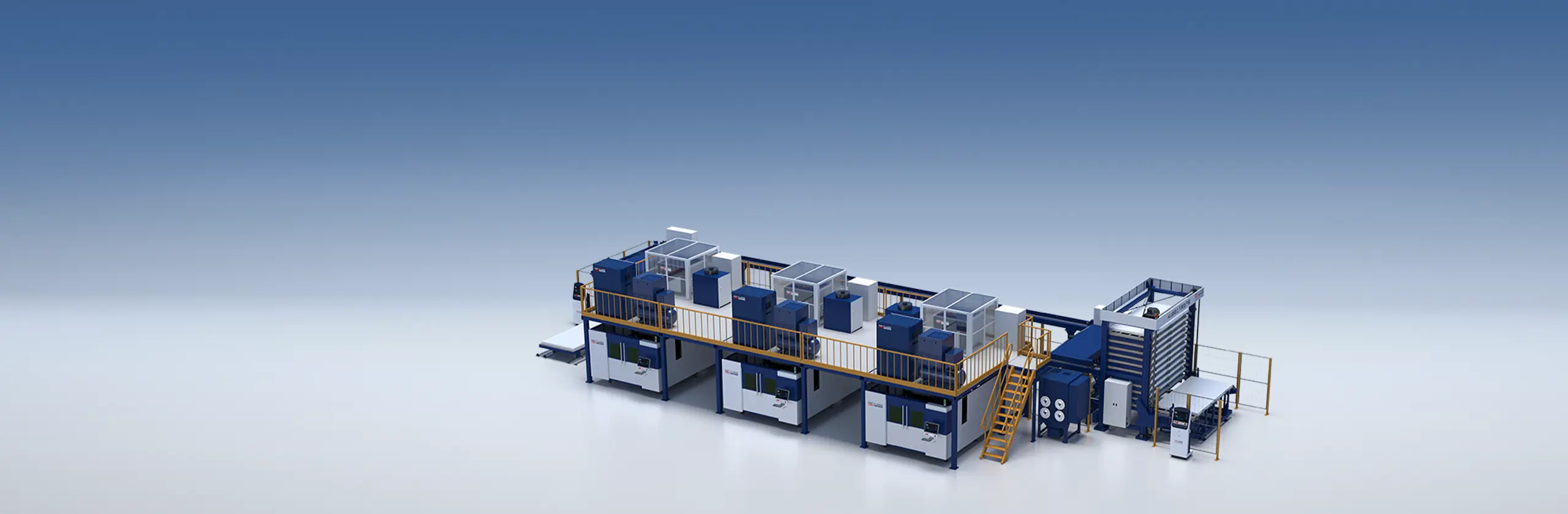

Laser Automation Solution
A New Approach to Manufacturing Liberates the Metal Forming Workflow
Metal forming automation solutions begin with task scheduling, material picking, laser processing, work-piece handling and stacking, and scrap management.

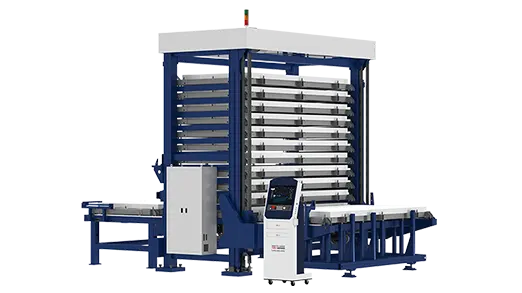

Storage Tower

Sheet Metal Storage
The single/double storage tower comes standard with 10/15/20/30/40 storage spaces, the number of storage spaces can be customized, equipped with intelligent detection function, the weight and height of the sheet metal are automatically detected during storage. Over-limit alarm to prevent errors.

Automatic Loading Robot

Single structure cup independent vacuum safety-oriented, zoning control, flexible to adapt to a variety of sizes of plates. Furthermore, the robot has sheet separation and thickness detection functions, ensuring single-sheet loading per operation.

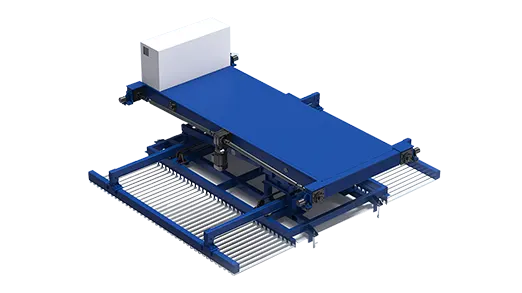

Automatic Unloading Robot

The unloading robot uses servo control, ensuring accurate positioning and fast, flexible movements. Comb-like fork structure, safe and reliable.

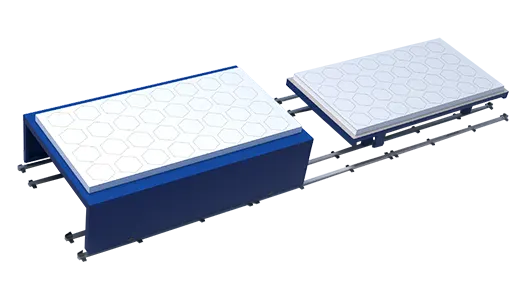

Electric Double Layer Exchangeable Carts

High and low double-layer sorting platform, saving floor space, dual workstation production, maximum weight of raw material platform 3t.

Modular Designt

Reserved extension interface, cutting machines can be added according to subsequent production capacity requirements to achieve one drag and two, one drag and three (one drag and n).

Technical Data
For reference only, all data shall be subject to actual technical documents.

ALU Series

Max.Sheet metal size

Max. Load per layer

Max. Height per layer

Max. Lifting speed

Max. Transfer speed

Max. Transfer weight

Layers of storage racks

≤3000mmx1500mmx20mm

3T

50-90mm

12m/min

15m/min

3T

10/12/15 ( Based on factory height )

≤4000mmx2000mmx16mm

3T

50-90mm

12m/min

15m/min

3T

10/12/15 ( Based on factory height )
