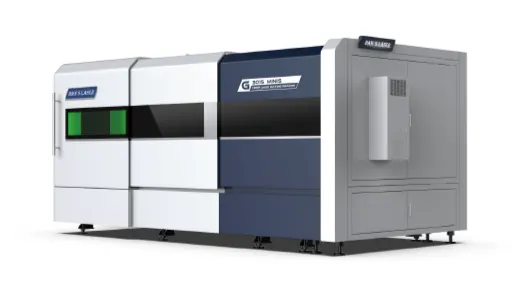

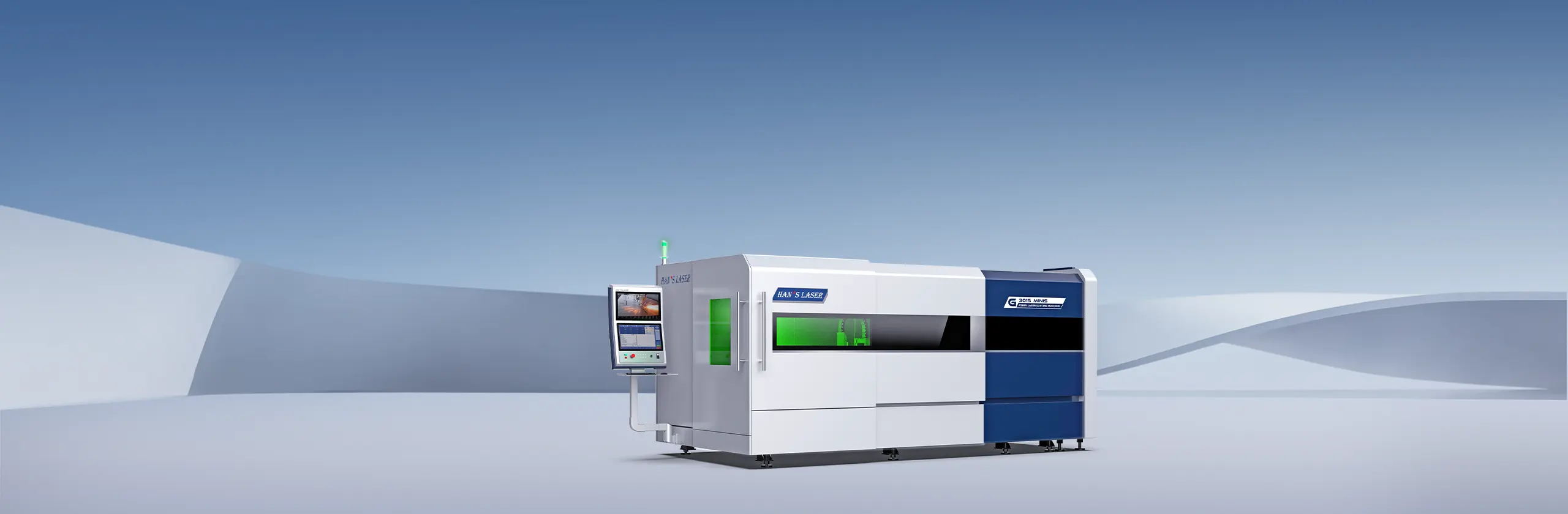

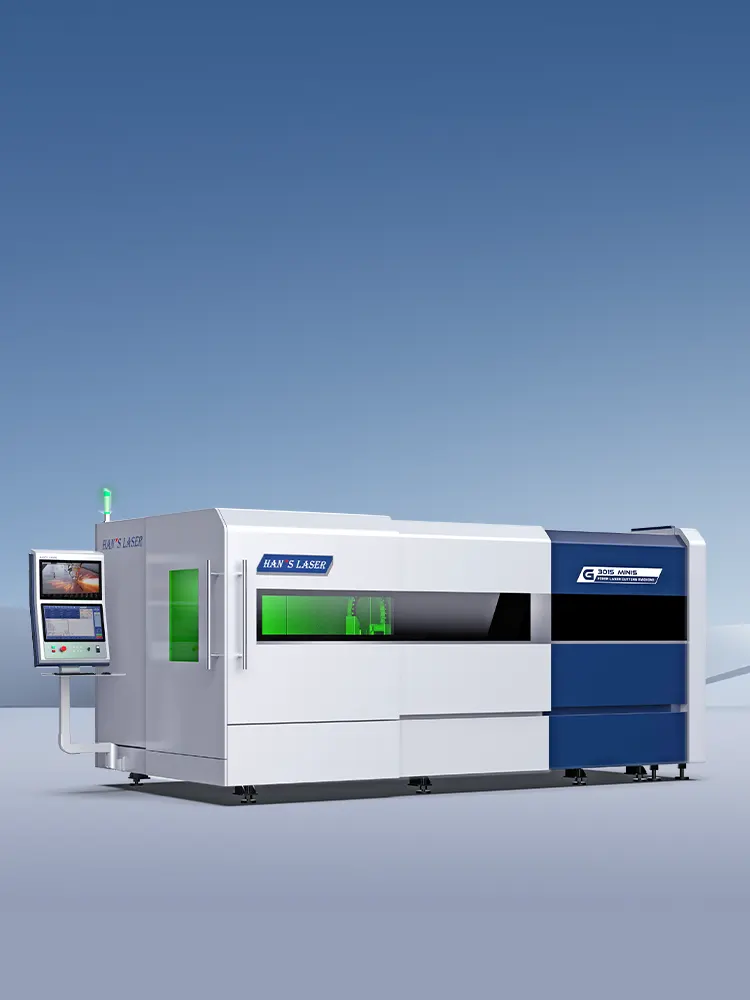

MINI S
Smart Laser Cutting Tool Cost-effective Laser Cutting Machine for Entry-level Machine Available power: 3kW ⁄ 6kW ⁄ 12kW
MINI S Technical Data Sample
Fill for download or contact us
Overview
Cost-effective Laser Cutting Machine for Entry-level Machine
Maintenance-friendly access, easy to install and maintain, effectively improves the utilization rate of the production space, and reduce machine footprint, saving shipping costs. Increased cutting area,be able to cut AS (American standard) sheet in “inch” size.

Laser Safety

Fully Enclosed machine with OD 5+ laser glass windows:

Protect the eyes and skin from laser radiation;
Reduce the noise pollution;
Reduce the cutting smoke pollution;
Provide a good working environment;

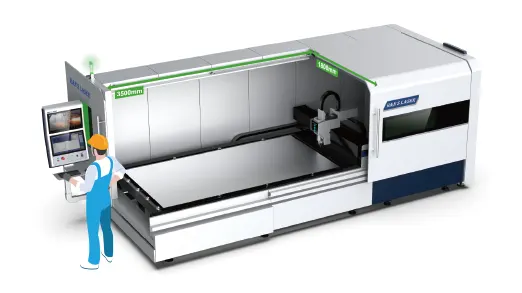

Accessible

More Accessible & More Flexible
Thanks to adjustable operating terminal & front door + long side sliding door design,Loading ⁄ unloading for variety of small piece turn to be easy, shorter response times for Demo-cut.

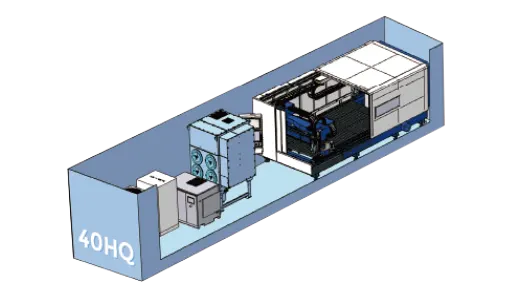

Compact Design

Maintenance-friendly access, easy to install.
Electrical cabinet ⁄ laser source ⁄ pneumatic system ⁄ lubrication system ⁄ table drive motors all integrated in Main Frame, are flexible in placement, easy to install and maintain, effectively improves the utilization rate of the production space, and reduce machine footprint, saving shipping costs.

Work Environment Friendly

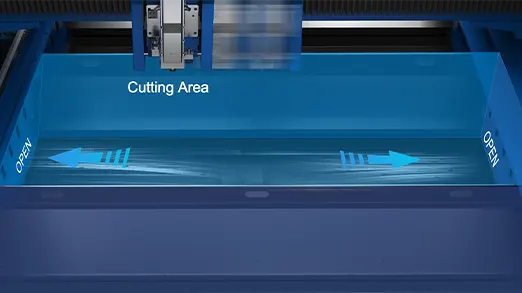

Separation dust suction system
The multi-zone suction comes with good dust removal effect by area, which intelligently distributes the air volume of each exhaust outlet to each partition structure and effectively improve the suction and dust removal capacity of the processing area. It also reliable to reduce the risk of contamination of the cutting head that keep your working area clean.

Lower Gas Consumption

Low N2 pressure cut
Faster cutting speed,less cutting time of the same batch, up to 67% Gas Saving.

Mix-M Device

Gas mixing cabinet patent of Han's Laser (Optional)
Mix-M process function: equipped with a 20kW or higher power laser, suitable for rapid cutting of 10~40mm carbon steel, solving the problem of traditional medium and thick plate cutting sections and corner slag hanging, effectively improving the upper and lower taper and roughness of the workpiece, greatly improving processing efficiency and workpiece accuracy.

Cutting Capacity

MINI S

Working Area

Max. Axis positioning speed (X ⁄ Y)

Max. Acceleration

Precision

Repetitiveness

Max. sheet weight

Available laser power

3100mm × 1550mm

120m ⁄ min

1.5G

0.05mm ⁄ m

0.03mm

2150kg ⁄ table

3kW ⁄ 6kW ⁄ 12kW
