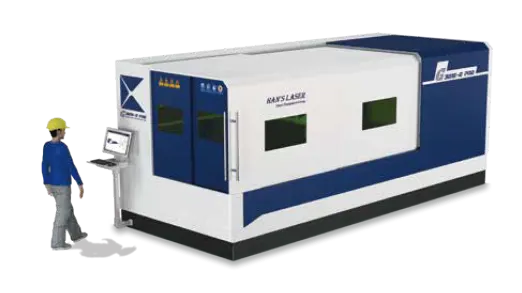

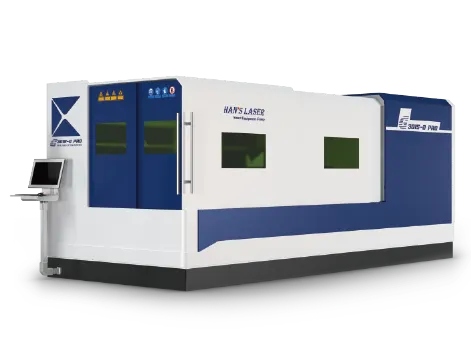

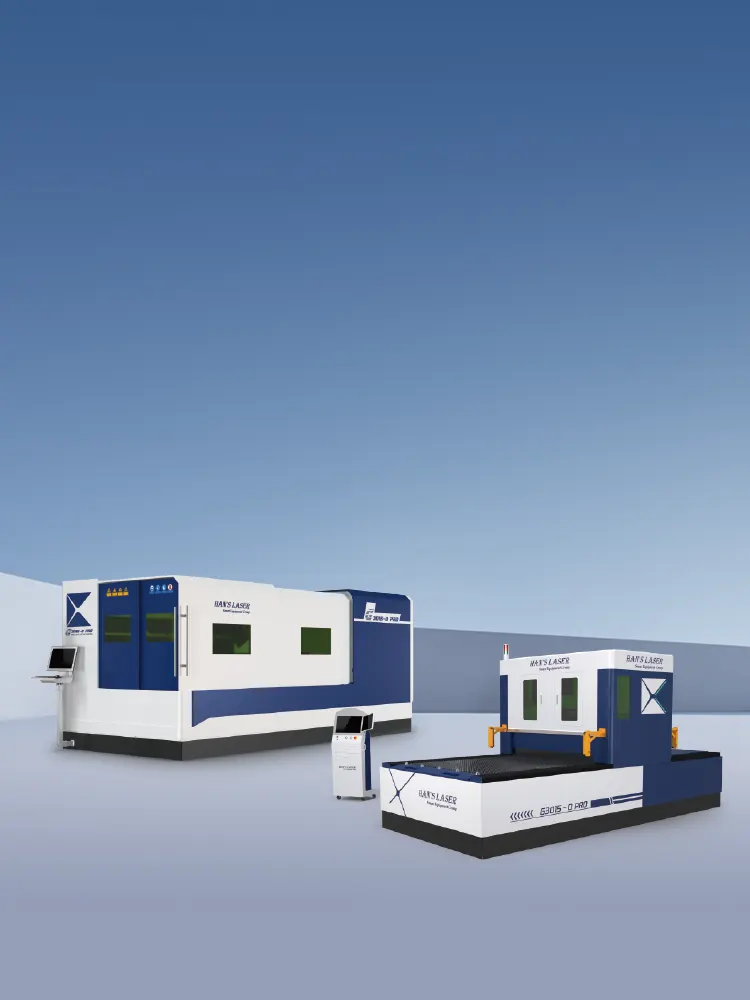

G3015-O PRO
Single Platform Fiber Laser Cutting Machine Available Laser Power: 3kW-20kW
G3015-O PRO Technical Data Sample
Fill for download or contact us
Overview
Flexible Layout, Safety & Environmental Compliance
The G3015-OPRO fiber laser cutting machine adopts a gantry dual-drive structure. The entire bed is welded and annealed from carbon steel, and the crossbeam is machined and formed from high-strength materials and heat-treated. Both are processed through rough machining, vibration aging treatment, and fine machining to achieve extremely high geometric tolerance accuracy. In terms of transmission, it is equipped with selected well-known brands of high-rigidity precision reducers, ground gear racks, high-precision linear guides and other efficient transmission mechanisms with good rigidity and high precision to ensure long-term stable operation of the equipment.

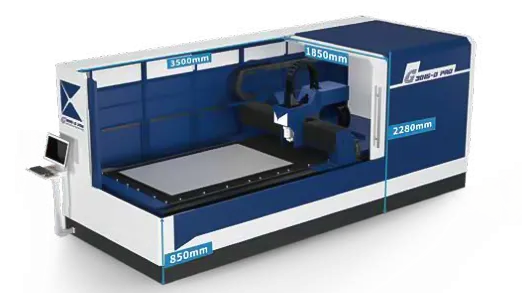

Compact Footprint

Flexible Layout, High Space Utilization

Minimal floor space required; flexible layout enhances production space efficiency;

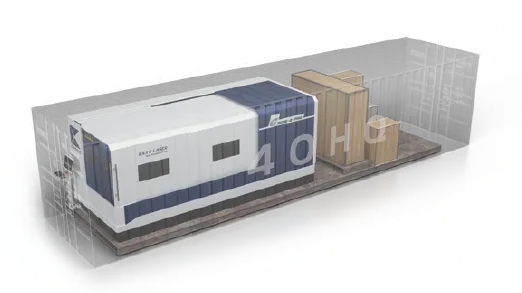

Requires only one 40HQ container for packaging and transport;

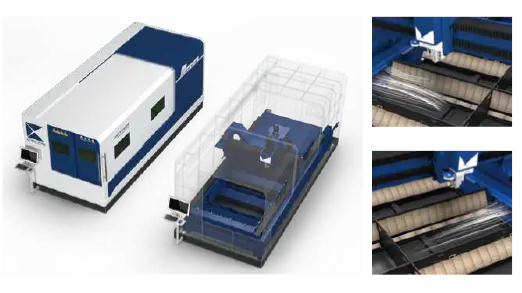

Laser Safety

Fully-Enclosed Protective Cover & Environmental Safety

The fully-enclosed protective cover ensures operational safety during laser processing by preventing laser radiation hazards and significantly enhancing dust/fume extraction efficiency.
Featuring multiple high-sealing dampers with intelligent synchronization to the cutting process, the extraction system guarantees excellent airtightness and efficient ventilation.

Easy and Flexible Loading/Unloading

Sliding access doors on both front and right sides for convenient material handling;
Four laser-protected observation windows (front & right) for real-time monitoring during operation;

User-Friendly

Convenient handheld controller and touchscreen interface. Streamlined setup and control for enhanced productivity in metal cutting.

Integrated Reliability System

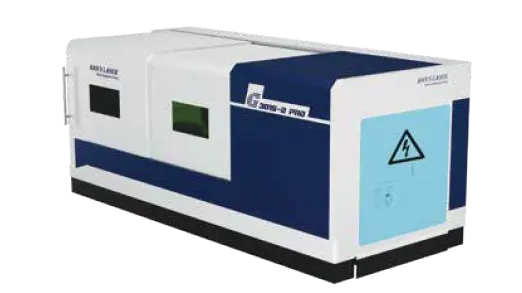

Integrated Control Cabinet with Industrial-Grade Air Conditioner

Minimizes short-circuit risks caused by excessive electrical wiring;
Maintains constant temperature in the control cabinet, ensuring long-term, stable machine performance.

Fully Automatic Solution

Han's Intelligent Bus-Based CNC Cutting System

Full-featured CNC system with excellent performance;

Customizable functions available on request Remote diagnostics and support;
System upgrades require only software updates, with no need for hardware replacement.





Cutting Capacity

G3015-O PRO

Working Area

Repeat positioning accuracy

Max. Positioning Speed

Max. Acceleration

Available Laser Power

3000mm×1500mm

±0.03mm

120m/min

1.5G

3000W/6000W/12000W/20000W
