More Flexible

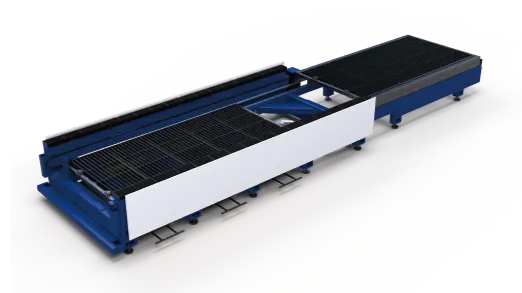

Interactive workbench <25″
● Two tables can pull out of cutting area at the same time;
● Easy to do maintains job inside the machine;
● Loading & unloading on the table does not affect the other;
● Ensure good cutting quality when the other table is loading or unloading;
Exceptional Dynamic Performance
Dual-Drive Gantry System
The robust design, combined with the dual-drive gantry system, ensures excellent high-speed dynamic performance, even during extended operation.
High Stability

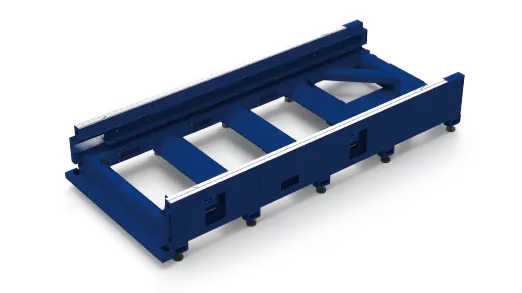

Reinforced Bed Structure Design
The high-rigidity machine bed is treated with high-temperature stress relief treatment. Its robust and vibration-resistant construction delivers exceptional precision, minimal vibration, and extended service life for laser cutting operations.
Work Environment Friendly
Matrix-Type Adaptive Dust Extraction
High-capacity filtration system with dynamic control of the exhaust port, shortened airflow path, concentrated wind force, and powerful suction for efficient fume and particulate removal. It also reliable to reduce the risk of contamination of the cutting head and keep your working area clean.
Burn-Free Edges
Smart Corner Processing
Dynamic parameter adjustment and optimized path algorithms ensure smooth transitions between right, acute and obtuse angles with clean, burr-free cuts.
Compact Design

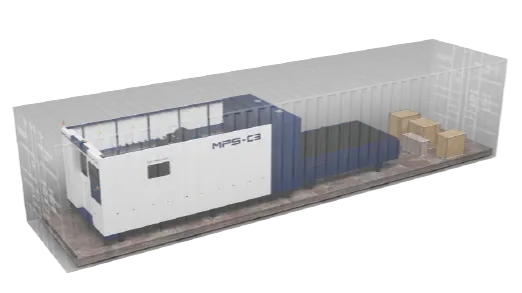

Whole Machine Loaded into 40HQ Container
The packaging and transportation only use a 40HQ container, saving shipping costs.
Easy to Operate
Excellent Performance Bus Control System
● High cutting efficiency, excellent cutting quality, precise control, and user-friendly operation;
● Supports one-click quick import of drawings in formats such as DWG, DXF, and LXDS;
● MES docking is easy to realize, allowing real-time equipment operation monitoring and task updates via a mobile phone application.
High-precision

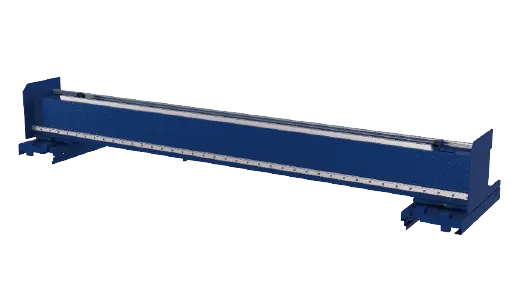

Dual-Drive Precision Gear Reducers with Rack-and-Pinion System.
Professional manufacturing process equipped with high-precision core transmission components, small friction coefficient, high positioning accuracy, high sensitivity, low noise when operating at high speed, long-term life time of components, and good dimensional accuracy of parts.
Improve Part Quality
Variable Beam Shape
The beam pattern can be switched at any time for different plates, advanced in cutting both thick and thin plates, doubling the efficiency.
● Circular spot: Oxygen cutting is more stable, heat is more dispersed, and the average;
● Gaussian spot: Air/nitrogen cutting speed is faster, heat is concentrated;
● Double spot is mainly aimed at cutting medium and thick plates, improving cutting speed and cutting section quality.
More Efficient Cutting
Even Handle Highly Reflective Materials
The laser power is continuously adjustable, with high beam quality and reduced spot diameter, enabling micron-level cutting to meet high-precision requirements. It can perform high-speed cutting on various plates such as carbon steel, stainless steel, aluminum, brass, etc; The air cutting speed and nitrogen cutting speed are greatly improved, and the production efficiency is significantly improved;

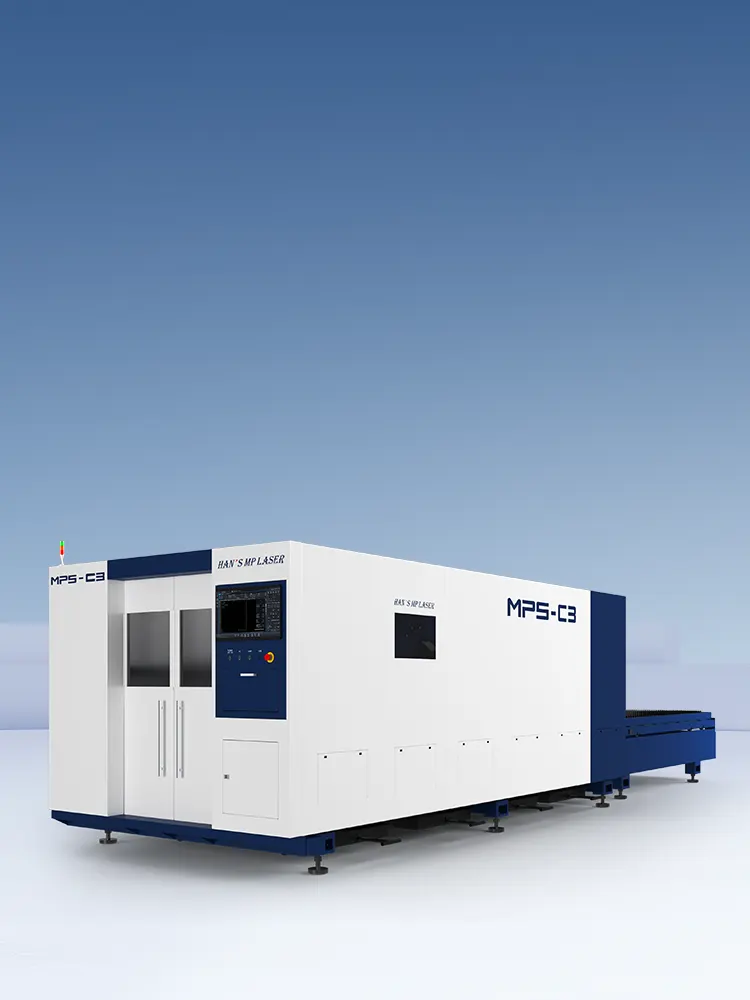

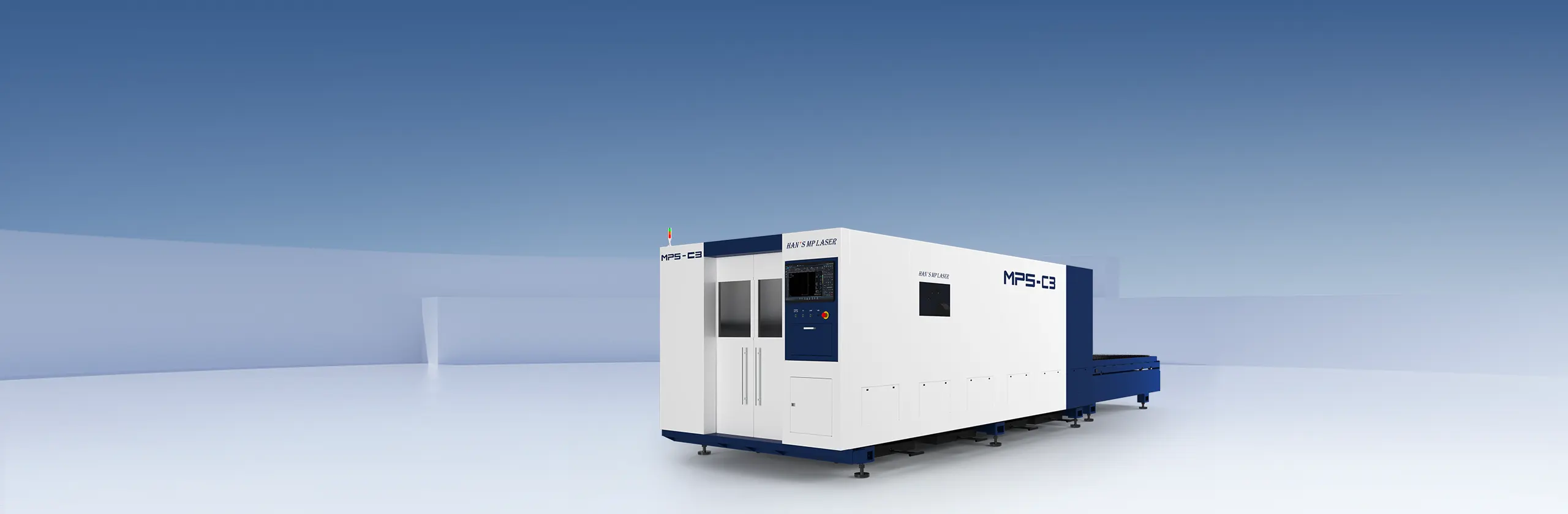

MPS-C3
Working Area [mm]
Positioning Accuracy （X/Y）
Repeatability（X/Y）
Max. Positioning Speed (X/Y)
Max. Acceleration (X/Y)
Dimensions (LxWxH)
Available laser power
3000mm×1500mm
±0.05mm
± 0.03mm
120m/min
1.5G
8650mm×2250mm×2200mm
1500w ⁄ 2000w ⁄ 3000w ⁄ 6000w (optional)
