A rigid body structure is the first line of defense for vehicle safety.
As automotive safety standards continue to rise, manufacturers are increasingly adopting hot-stamped steel components with tensile strengths reaching 1,500 MPa. However, traditional trimming and punching processes struggle to meet the precision and efficiency requirements of these ultra-high-strength materials.
To address this challenge, Han’s Laser 3D five-axis laser cutting machines provide a reliable and highly precise solution for trimming and hole cutting of complex hot-formed automotive parts, helping manufacturers build stronger, safer vehicle body structures.
Laser Cutting Solutions for Automotive Parts Manufacturing
In modern automotive production, hot forming materials are widely used in structural components such as A-pillars, B-pillars, door beams, and crash reinforcement parts. Han’s Laser cutting systems have been successfully implemented across multiple automotive parts manufacturing plants.
A typical production process includes:
* Coil laser cutting lines for blank preparation
* Automated laser cutting production lines for high-efficiency processing
* 3D five-axis laser cutting machines for post-forming trimming and hole cutting
This integrated approach significantly improves production efficiency while maintaining consistent cutting accuracy and part quality.
Recommended Specific Models for the Automotive Industry

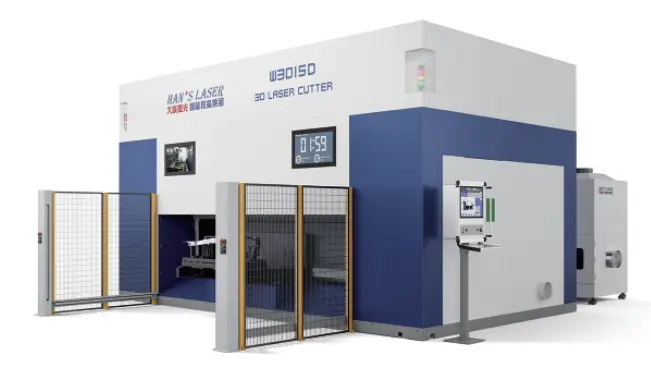

W-D Series
3D Five-Axis Laser Cutting Machine for Hot-Formed Parts
The W-D Series is specifically designed for trimming hot-stamped components.
Key features include:
* Moving gantry structure with compact design
* Optimized for hot-formed automotive parts
* 3D cutting head with 360° continuous rotation
* Rotary exchange worktable for high precision and high productivity
This configuration ensures stable performance and efficient processing of complex three-dimensional parts.

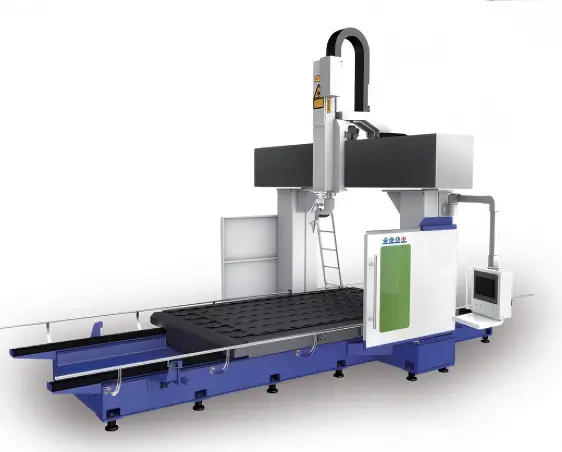

W-T Series
Worktable-Type 3D Five-Axis Laser Cutting Machine
The W-T Series offers maximum flexibility and processing space.
Main advantages:
* Fixed gantry structure with moving worktable
* Large working envelope for oversized automotive parts
* Excellent dynamic performance for high-speed cutting
* 3D cutting head with continuous rotation
* Swing head quick-change system enables multi-function applications with one machine
This makes the W-T Series suitable for diversified production requirements.

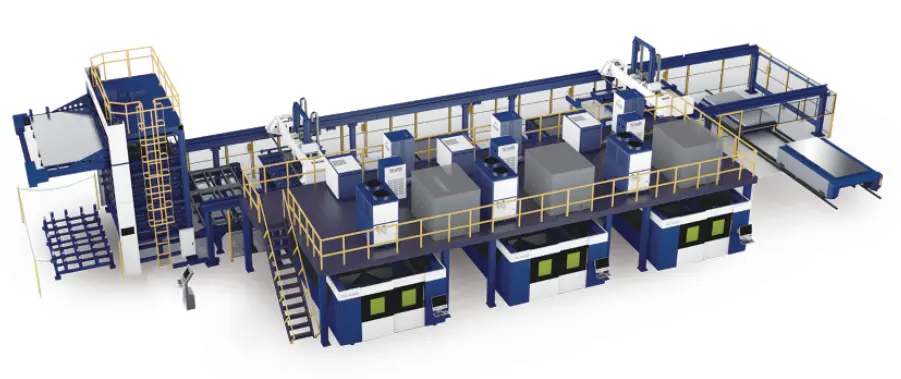

Automation Series
Automated Laser Cutting Production Lines
Han’s Laser automation solutions are designed to minimize manual intervention and reduce labor costs.
Key highlights:
* High-level automation enabling near “unmanned” production
* Self-developed FMS intelligent scheduling system
* Integrated control system with self-diagnosis and easy maintenance
* Modular structure with reserved expansion interfaces
These systems are ideal for automotive manufacturers seeking scalable and intelligent production lines.

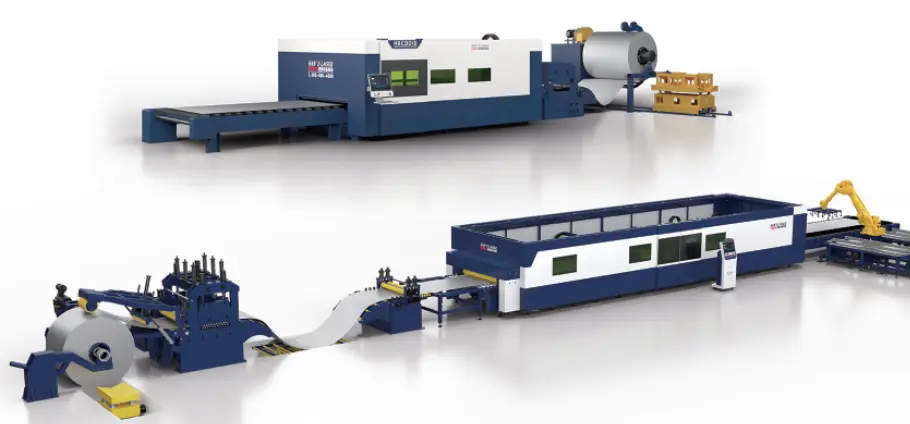

Coil Laser Cutting Series
RBC Coil-Fed Laser Cutting Line
The RBC coil laser cutting production line provides an efficient solution for blanking operations.
Features include:
* Scrap chopping and tail material recovery
* One-time forming for complex parts
* Maximized material utilization
* Integrated marking and cutting in a single process
This solution helps manufacturers reduce waste and improve overall production efficiency.

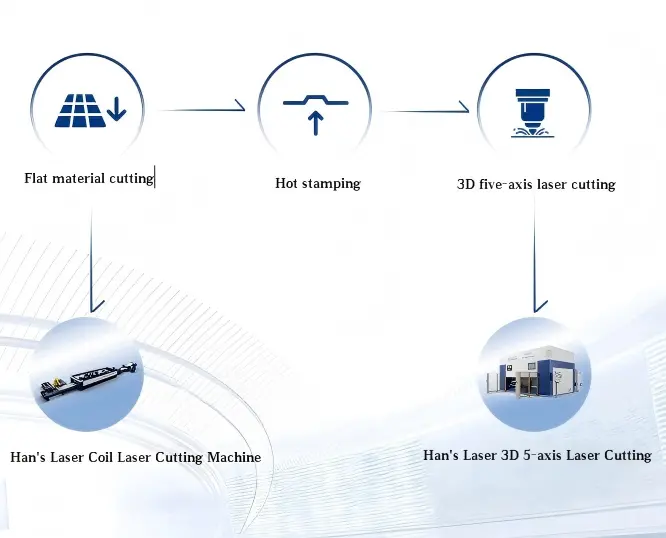

Automotive Parts Processing Workflow
Blanking Process
Flat blanks are produced by Han’s Laser coil-fed cutting line, integrating:
decoiling → leveling → feeding → laser cutting → unloading
This fully automated workflow ensures stable quality and high throughput.
3D 5-axis Laser Cutting Process
After hot stamping, the formed parts are processed using Han’s Laser 3D five-axis laser cutting machines for:
Edge trimming、Hole cutting、Complex contour processing
Deep Expertise in Automotive Manufacturing
With decades of experience in laser processing technology, Han’s Laser continues to overcome key technical challenges in high-end manufacturing. To deliver laser cutting equipment, solutions, and services for the smart manufacturing sector. Several of our mid-to-high power laser cutting systems are operating reliably in the automotive manufacturing industry, delivering precision cutting with high quality and consistency.
By combining advanced laser equipment with intelligent automation solutions, Han’s Laser supports automotive manufacturers worldwide in achieving safer, stronger, and more efficient vehicle production.
