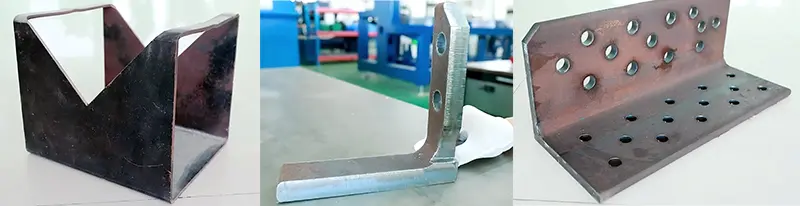

As industries increasingly pursue customization, lightweight design, and aesthetic innovation, special-shaped metal tubes—such as D-shaped, hexagonal, and U-shaped profiles—are gaining popularity. These non-standard tubes offer both mechanical advantages and visual appeal, making them widely used in furniture manufacturing, automotive structures, sports equipment, and architectural design.
However, processing these irregular tubes presents new challenges for traditional laser cutting machines,which are typically optimized for round or square tubes.To meet modern manufacturing needs, laser cutting technology must evolve toward greater intelligence, flexibility, and precision.
Key Challenges in Cutting Special-Shaped Tubes
1.Unstable Clamping
Irregular shapes make it hard to achieve stable and symmetrical clamping with standard two- or three-jaw chucks. Insufficient grip can lead to vibration, misalignment, or even deformation during cutting—directly affecting precision and surface quality.
2.Complex Cutting Path
Unlike round or square tubes, special-shaped profiles require more sophisticated path planning. Precise multi-axis coordination is essential to follow curved or angled surfaces accurately, often within a true 3D workspace.
3.Limited Positioning Accuracy
Because most special-shaped tubes lack rotational symmetry, even minor misalignment can result in significant cutting deviation or part defects. Traditional systems struggle to maintain accuracy without advanced recognition and correction mechanisms.
Advanced Solutions for High-Precision Cutting
Modern laser tube cutting systems are overcoming these challenges with several breakthrough innovations:

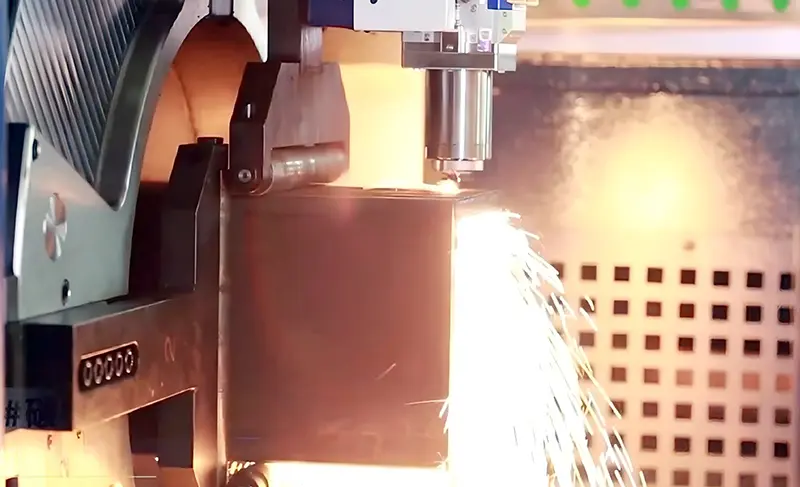

1.Adaptive Clamping System
Next-generation machines feature programmable or self-adjusting chucks that automatically adapt to various tube geometries. Dynamic pressure control and custom-designed jaws ensure firm yet gentle clamping, minimizing vibration and preventing surface damage.
Result: Improved stability, higher accuracy, and reduced mechanical stress on both the tube and equipment.
2.Intelligent 3D Path Planning
With multi-axis synchronization (X, Y, Z, and rotary axes), the cutting head remains perfectly aligned with the tube surface, even on curved or angled sections. Advanced software can simulate tool paths beforehand to avoid interference and optimize speed and precision.
Result: Clean, burr-free edges and consistently smooth cuts on complex profiles.
3.Vision-Guided Positioning System
Integrated CCD vision systems enable real-time detection and alignment of tube position and orientation before and during cutting. By analyzing surface features or markers, the system automatically corrects misalignment.
Some high-end models incorporate AI algorithms that recognize different tube types and automatically select optimal cutting parameters.
Result: Faster setup, higher positioning accuracy, and ideal for multi-batch or small-lot production.
The Future of Smart Tube Cutting
The widespread use of non-standard tubes is driving laser technology toward smarter and more flexible manufacturing. By integrating adaptive clamping, intelligent motion control, and visual recognition, today’s advanced tube laser cutting systems are capable of high-efficiency, high-precision processing across a variety of special-shaped materials.
If your production involves diverse tube profiles, upgrading to a next-generation intelligent laser tube cutting system is not just about cutting faster—it’s about cutting smarter.
Let us help you achieve smarter cutting, not harder cutting.
