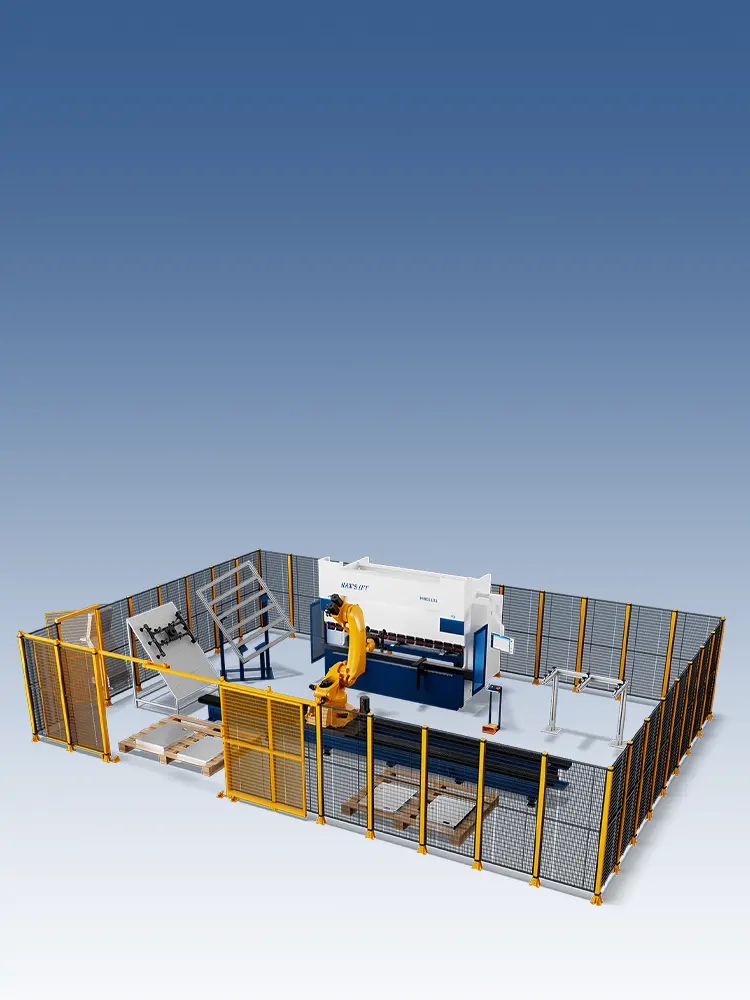

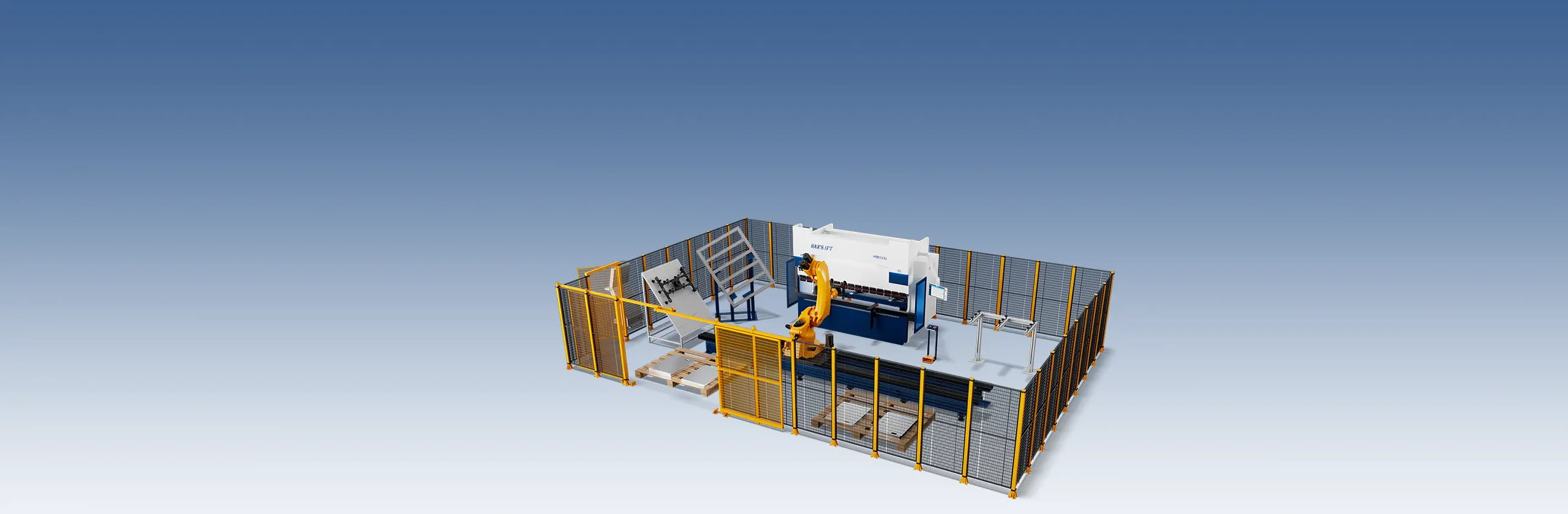

Bending Automation Cell
24/7 uninterrupted production to cut manual workload; Ideal for mass sheet metal parts demanding high uniformity.
Bending Automation Cell Technical Data Sample
Fill for download or contact us
Overview

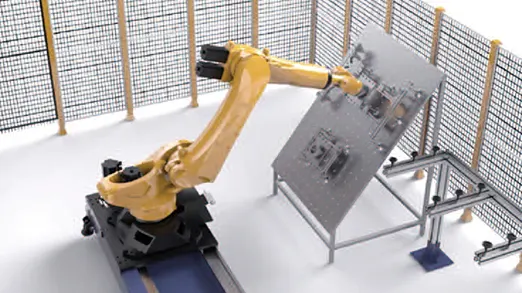

This series of robotic bending cells adopt fixed robots and are equipped with auxiliary devices including centering tables, turnover frames and interchangeable grippers to fulfill the process requirements of automatic bending. They are suitable for mass-produced products with strict consistency standards, support 24-hour non-stop production, reduce labor intensity and improve production efficiency.

Automated Sheet Handling

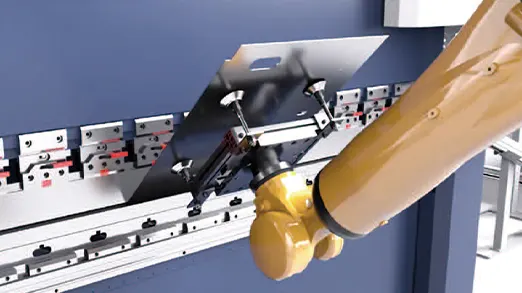

Combines CNC press brakes with robotics for automated grasping, rotation, centering, bending and palletizing.



Cuts manual labor, boosts efficiency with a 30% cycle time reduction, and lowers operational costs.

Flexible Configurations

Select fixed or mobile robots to build custom bending cells optimized for specific workflows.



Synchronizes seamlessly with laser cutting FMS and other equipment to construct fully automated sheet metal production lines.

Sample

Payload (kg)

Axes

Max. Workpiece Dimensions (mm)

Max. Working Radius (mm)

Repeatability (+mm)

Max. Workpiece Weight (kg)

Robot Weight (kg)

45

6

1500 X 1250

2200

±0.08

22

520

80

6

2500 X 1250

2565

±0.2

40

740
