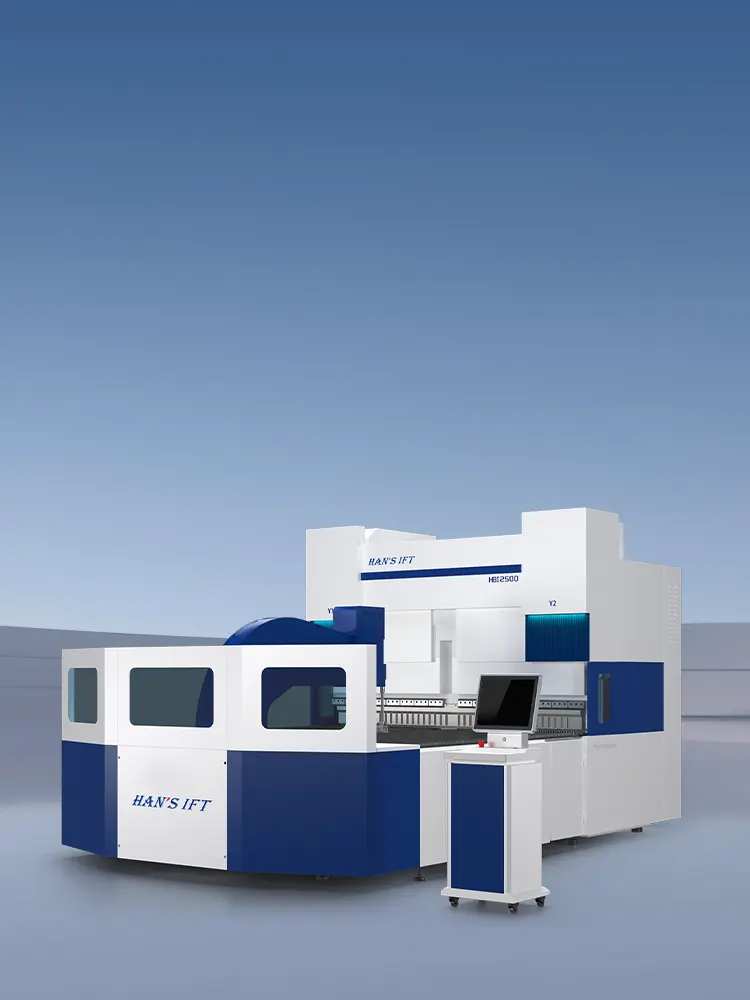

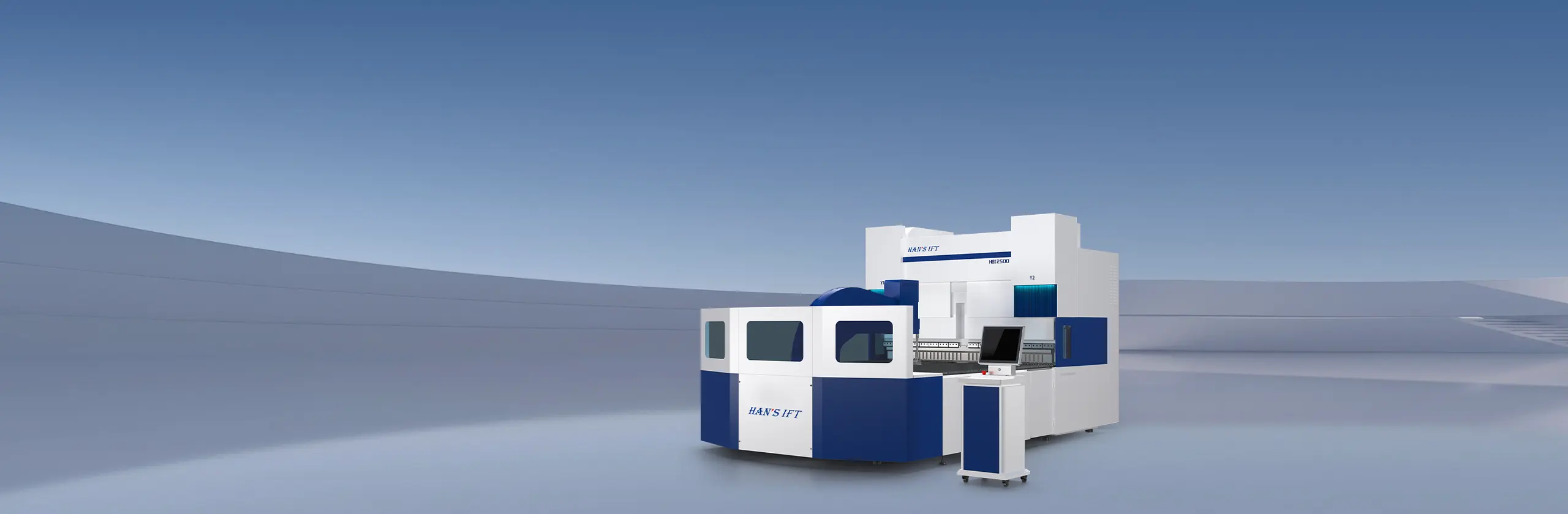

HBI Series
Multi-Sided Bending Center Single positioning for multi-edge, multi-pass bending, slashing cycle time; Auto feeding & bending to lower labor expenses.
HBI Series Technical Data Sample
Fill for download or contact us
Overview
It is widely used in cabinet & chassis enclosures, kitchenware, curtain wall, door, elevator, home appliance and furniture industries for high-speed forming of intricate sheet metal parts.

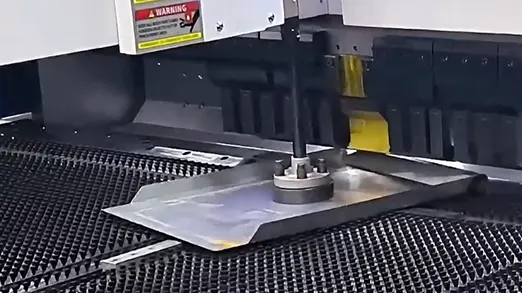

CNC Auto-Positioning

Multi-axis synchronized motion enables multi-edge, multi-pass bending in a single setup, slashing cycle time and boosting efficiency two to three times compared with conventional CNC press brakes.



Integrated feeding and bending systems minimize manual intervention, lower labor intensity, and reduce labor costs.

Versatile Tooling

A single die completes complex forming processes including flattening, arc bending, reverse bending and flanging, eliminating the need for custom tooling. Combined with an expanded processing envelope, it delivers flexible adaptability to a wide range of orders.



Automatic sheet alignment paired with wrinkle-free clamping ensures consistent dimensional accuracy and uniform part quality, supporting high-volume premium-grade production.

Sample

X-axis Effective Travel

Y-axis Effective Travel

C-Bearing Plate Diameter

Min. Distance (C-Axis to Tool Tip)

Max. Bending Width

Max. Bending Height (All Sides)

Max. Unfolded Sheet Size

Bending Capacity (Thickness)

Bending Accuracy

120mm

200mm

100mm

150mm

1500mm

170mm

1500 x 1500mm

Steel: 1.5mm Stainless Steel: 1.0 mm Aluminum: 2.0 mm

0-180°

120mm

200mm

100mm

150mm

2000mm

170mm

1500 x 2000mm

Steel: 2.0mm Stainless Steel: 1.5 mm Aluminum: 3.0 mm

0-180°

120mm

305mm

100mm

150mm

2500mm

170mm

2500 x 1250mm

Steel: 2.0mm Stainless Steel: 1.5 mm Aluminum: 3.0 mm

0-180°
