In an era of rapid manufacturing transformation, Han’s Laser proudly introduces the fully upgraded ALU Series Automated Laser Cutting Production Line. This isn't just an iteration; it's a significant leap forward, building upon a legacy of proven performance to deliver unprecedented levels of speed, precision, and intelligent automation.
Re-Engineered for Higher Speed, Accuracy, and Efficiency
The ALU Series is the upgraded successor of Han’s first flexible laser cutting production line. Both the laser cutting system and the intelligent scheduling system are independently developed by Han’s Laser, The result? A faster cycle time and guaranteed continuity, high efficiency, intelligence, and stability for your production.
Uncompromising Performance:
-
Higher Speed: Horizontal speed up to 60m/min , Lifting speed up to 9m/min , Fork opening/closing up to 10m/min .
-
Superior Precision: Equipped with high-torque servo motors achieves positioning accuracy below 1 mm.
-
Boosted Efficiency: Increase your overall production productivity by 25-30%.
The ALU Series is engineered for true "lights-out" manufacturing. The fully automated line streamlines the entire workflow—from production scheduling, material storage, loading, cutting, unloading, to scrap collection—supporting continuous, high-volume, and high-efficiency manufacturing.
Key Components of the Automated Line:

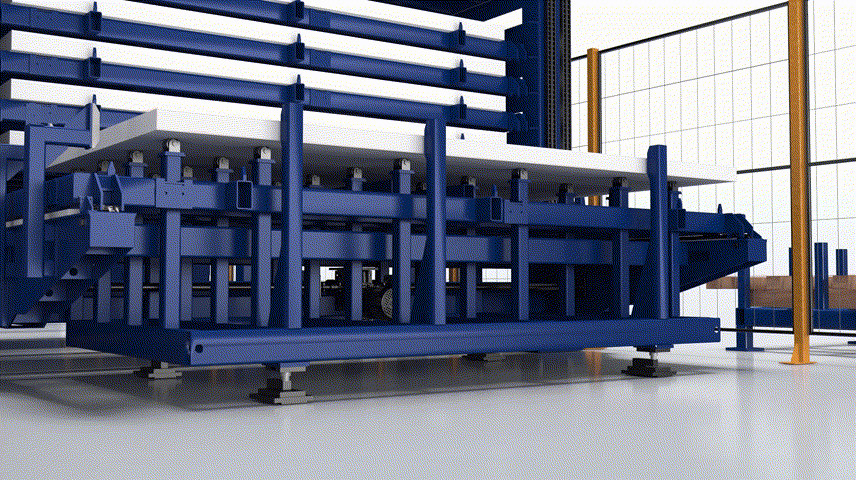

1. Intelligent Storage Tower & Warehouse
-
Flexible Capacity: Choose from single or dual towers with standard configurations of 10, 15, 20, 30, or 40 storage locations. Custom options are available.
-
Large-Scale Storage: Multi-column warehouses with stacker cranes enable massive storage for raw materials, semi-finished, and finished products, facilitating multi-process coordination.
-
Smart Management: Automated weight and height detection upon entry prevents errors with over-limit alarms.

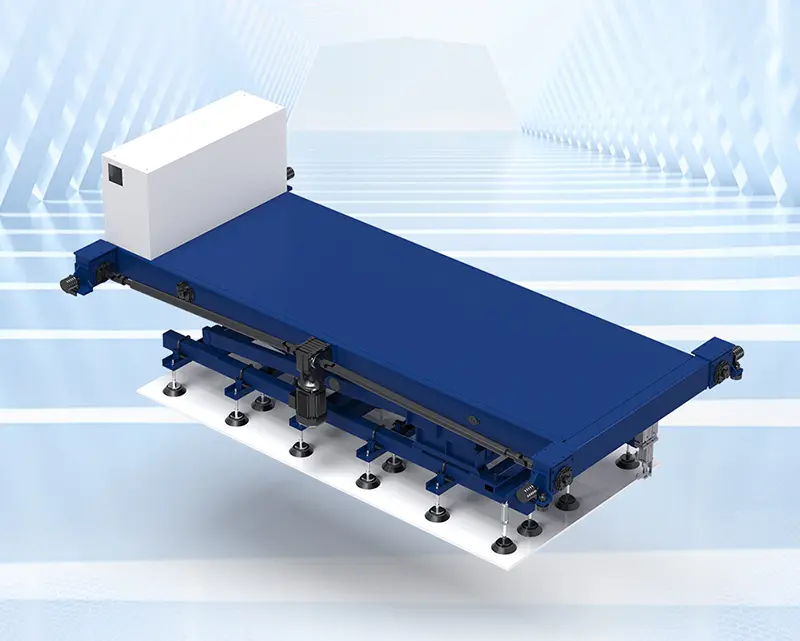

2. Servo Loading Robot with Magnetic Sheet Separation
-
Features servo control for precise, rapid positioning.
-
Utilizes independent vacuum cup control for faster response and flexible suction zone adjustment based on sheet size.
-
Integrated magnetic sheet separation and thickness detection ensure single-sheet loading, every time.

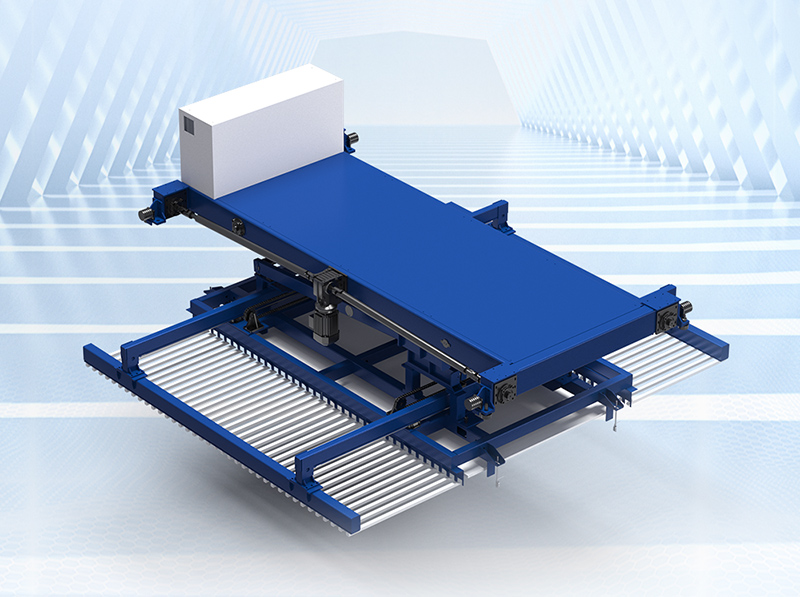

3. High-Strength Unloading Robot
-
Servo-controlled for efficient and accurate part handling.
-
A fork-type design simplifies unloading.
-
Reinforced forks (30*30*3mm steel tube) offer superior load capacity, with beveled tips to prevent jamming.

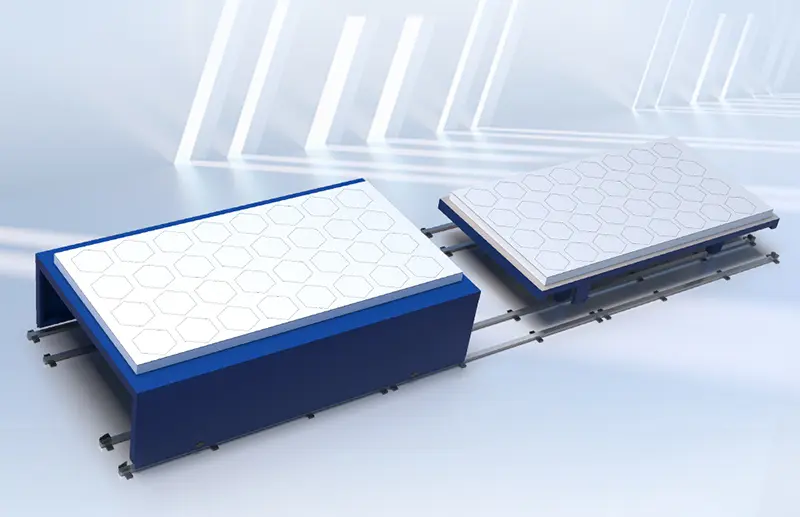

4. Double-Level Sorting Table
-
Features high and low positions that can be swapped when full.
-
With a max load capacity of 3 tons, it allows for centralized part sorting, eliminating waiting time and boosting efficiency.

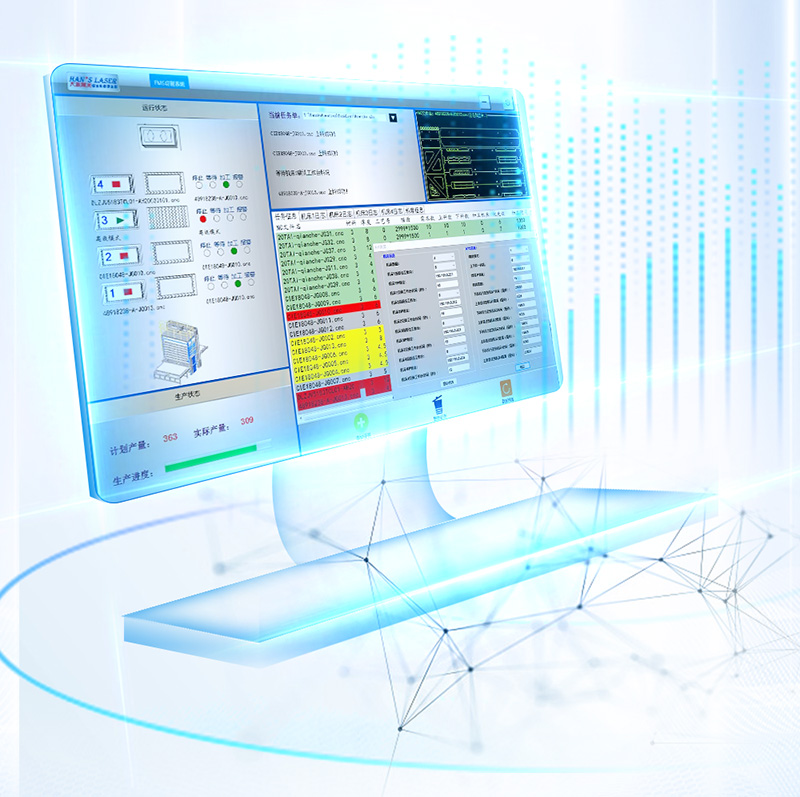

5.The Intelligent Brain: Han's FMS Control System
At the heart of the ALU Series is our proprietary FMS Intelligent Scheduling and Control System—a central "brain" that elevates operations beyond standard CNC and PLC control.
-
One-Command Operation: Execute tasks with a single command. There's no need for separate control of the cutter and loaders.
-
Real-Time Production Monitoring: Gain complete visibility over your shop floor. Monitor machine status, loader actions, job progress, operation logs, and historical data—all from an intuitive interface.

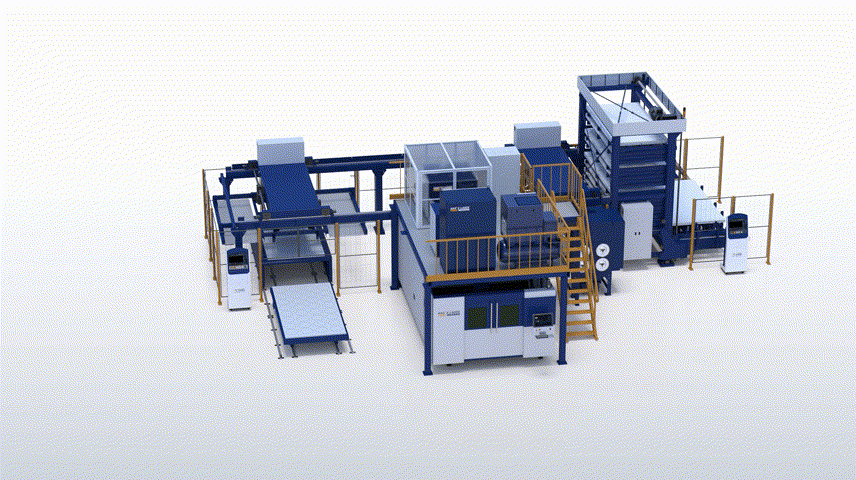

6.Future-Proof, Modular Design
The ALU production line is built with a modular architecture, allowing you to:
-
Configure the line based on your current needs.
-
Easily extend the line and add machines (1-to-N configuration) as your production demands grow.
-
Integrate seamlessly with higher-level MES systems, laying the foundation for a fully connected Smart Digital Factory.
Compatible Models
Automated loading and unloading production line specifically designed for Han’s Laser cutting machines.
Compatible with multiple series of Han's Laser Cutting Machine .
such like HF EXPERT , HF MIN , G3015-J and so on.
Conclusion
The ALU Series Automated Laser Cutting Production Line is more than just equipment; it's a strategic partner in your pursuit of excellence. By embracing smart, green, and high-end manufacturing, it empowers your business to achieve new heights of quality, safety, and sustainable growth.
