In heavy industrial manufacturing, the performance of the final product often depends on the quality of its structural components. Whether it is a wind turbine tower, a construction machinery boom, a ship hull section, or a specialized vehicle frame, the forming process directly affects structural strength, durability, production efficiency, and overall manufacturing costs.
As industries demand larger, stronger, and more complex structures, traditional fabrication methods based on multiple welded sections are increasingly facing challenges in productivity, dimensional consistency, and long-term reliability.

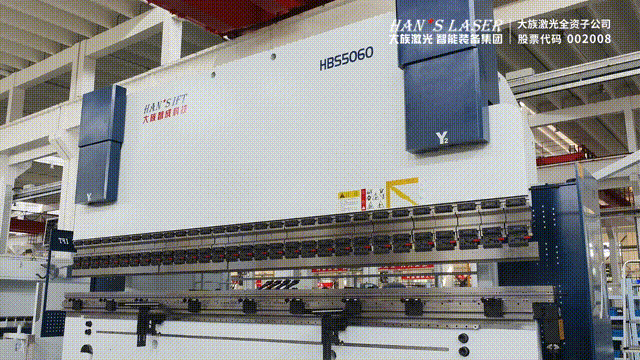

To address these challenges, Han's Laser developed the HBS Series Large-Tonnage Press Brake, providing an efficient and reliable solution for forming heavy-duty structural components.

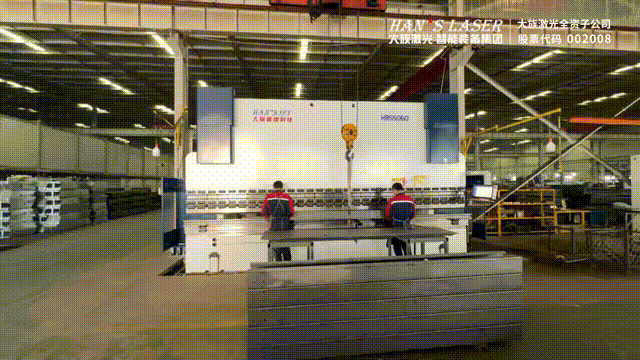

One-Piece Forming for Heavy-Duty Structures
Large structural components are often subjected to high loads, cyclic stress, vibration, and harsh operating environments. Traditionally, these parts are manufactured through a process involving cutting, welding, assembly, and correction.
However, this approach often introduces:
•Stress concentration caused by welding
•Reduced fatigue resistance
•Increased dimensional deviation and rework costs
•Longer production cycles and higher labor requirements
The HBS Series utilizes a precision one-piece bending process that significantly reduces reliance on multi-section welding.
With capacities ranging from 500 to 1200 tons and the ability to process steel plates up to 25 mm thick, the system enables manufacturers to produce large structural components with greater consistency and fewer fabrication steps.
Key Benefits
•Eliminate many welding-related weak points and improve structural reliability
•Enhance component integrity and product consistencywhile reducing assembly complexity and downstream processing
•Shorten production workflows by more than 50%and improve overall manufacturing efficiency
For applications where structural performance and long service life are critical, one-piece forming offers significant advantages over traditional fabrication methods.
Precision Engineering for Large Workpieces

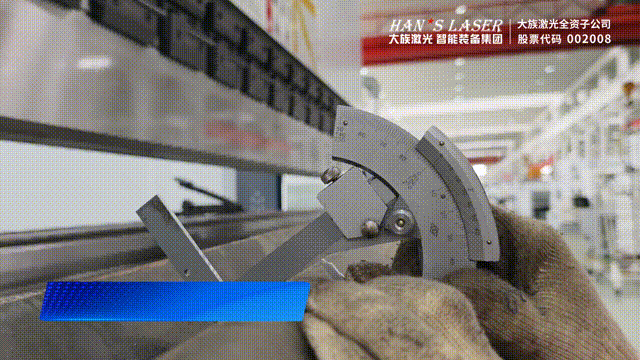

1. Maintaining Bending Accuracy on Long Components
One of the biggest challenges in heavy-duty bending is machine deflection under extreme loads. Even slight deformation can result in inconsistent bending angles across long workpieces.
To address this issue, the HBS Series incorporates a comprehensive precision control system.
High-Rigidity Frame Structure
The machine adopts a heavy-duty welded C-frame structure optimized through Finite Element Analysis (FEA). Stress-relief heat treatment removes residual internal stress, providing long-term stability and rigidity.
Intelligent Hydraulic Crowning Compensation
During the bending process, the intelligent crowning system automatically compensates for machine deflection in real time, helping maintain consistent bending angles along the entire workpiece length.
Precision Alignment Verification
Critical machine interfaces are inspected using laser tracking technology to ensure accurate assembly and long-term positioning precision.
The result is improved bending consistency, especially when processing oversized structural components commonly used in heavy industry.
2. Fast Changeovers for Flexible Production
Today's heavy equipment manufacturers increasingly face demand for customized products, smaller batch sizes, and shorter delivery cycles.
To meet these requirements, the HBS Series is equipped with an open and integrated intelligent control platform.
The system supports:
•3D graphical programming
•Offline simulation
•Automatic bend sequence generation
•Digital production management
Seamless System Integration
Through standard communication interfaces, the press brake can connect directly with Manufacturing Execution Systems (MES) and upstream laser cutting equipment.
Production data can flow seamlessly from engineering design to manufacturing execution, significantly reducing setup and changeover time.
Tasks that previously required extensive manual adjustment can now be completed within minutes, allowing manufacturers to respond more quickly to changing production requirements.
3. Reliability and Energy Efficiency for Long-Term Operation
Heavy-duty manufacturing environments require equipment capable of continuous operation under demanding conditions while minimizing operating costs.
The HBS Series is designed with reliability, maintainability, and energy efficiency as core priorities.
Integrated Hydraulic System
The hydraulic architecture features optimized piping layouts and fast-response control technology. The simplified design reduces pressure losses while minimizing potential leakage points.
Precision-Manufactured Hydraulic Cylinders
High-quality hydraulic cylinders provide stable performance and help maintain bending accuracy throughout extended production cycles.
Advanced Oil Management
Independent stainless-steel oil tanks combined with an efficient temperature control system help maintain hydraulic oil cleanliness and quality during long-term operation.
Together, these features create a more stable operating environment for hydraulic components, helping extend service life while reducing maintenance requirements.
Connecting Bending Operations to the Smart Factory
Manufacturing competitiveness today is no longer determined by individual machines alone. Success increasingly depends on how effectively equipment integrates into the entire production workflow.
The HBS Series is designed to function as a key node within intelligent manufacturing systems.
Information Flow Integration
The machine can receive production instructions and return operational data in real time, supporting:
•Process transparency
•Digital manufacturing management
•Production traceability
•Data-driven decision-making

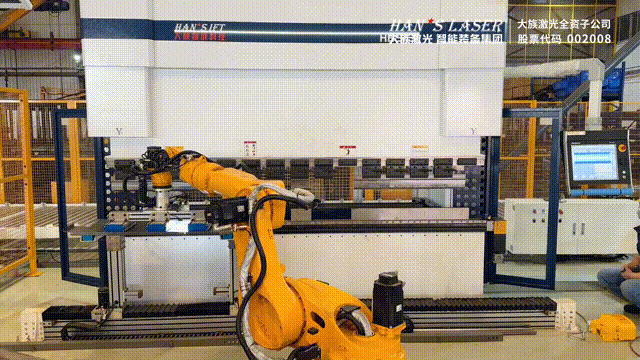

Automated Material Handling
The system can be integrated with industrial robots and automated handling equipment for positioning, loading, unloading, and transferring large workpieces.
This helps manufacturers build automated bending cells while improving workplace safety and production efficiency.
Complete Process Chain Collaboration
When integrated with Han's Laser cutting systems, manufacturers can establish a seamless workflow:
Laser Cutting → Precision Bending → Efficient Joining
This interconnected manufacturing chain improves quality consistency while reducing production time and overall operating costs.
Shaping the Future of Heavy Industry Manufacturing
As global competition intensifies, manufacturers must move beyond isolated process optimization and focus on improving efficiency across the entire production chain.
The Han's Laser HBS Series efficiently shapes critical structural components, helping heavy industry manufacturers boost production efficiency, improve product quality, and build more sustainable manufacturing capabilities for the future.
