Overview

Oil and gas equipment manufacturers work with demanding materials, large and complex components, and strict requirements for dimensional accuracy, weld quality, safety and traceability. Conventional processes can involve multiple machines, secondary machining, grinding or chemical treatment—adding time, cost and process complexity.

Han's Laser Smart Equipment Group provides an integrated portfolio of laser cutting, tube cutting, welding, cleaning and marking equipment for oil and gas manufacturing. These technologies support key stages of production, from material preparation and component fabrication to welding, surface treatment and permanent identification.

This article introduces five application areas: upstream drilling equipment, oil and gas pipeline fabrication, pressure vessels, equipment maintenance and lifecycle traceability. Whether you need laser cutting machines for pressure vessels, laser tube cutting machines for pipelines, or laser cleaning equipment for maintenance, this guide covers how Han’s Laser solutions support each production stage.

Why Laser Processing for Oil and Gas Equipment?

Laser processing offers several characteristics that can support modern oil and gas manufacturing:

1.Non-contact processing for flexible production across a range of parts and materials.

2.High cutting precision to support downstream fit-up, welding and assembly.

3.Low heat input compared with many conventional thermal processes, helping limit distortion in suitable applications.

4.Reduced need for consumables in processes such as laser cleaning.

5.Automation potential for repeatable production and remote operation where the process and equipment configuration allow.

The right process depends on the workpiece, material, thickness, production volume and required quality standard. Han's Laser solutions can be configured for different production needs across the oil and gas equipment value chain.

1. Laser Cutting for Upstream Drilling Equipment

Upstream equipment includes wellhead components, Christmas trees, blowout preventers, drill pipes, casings and drilling-platform steel structures. These parts may be exposed to high pressure, corrosion and cyclic loading, making material suitability and dimensional control important considerations.

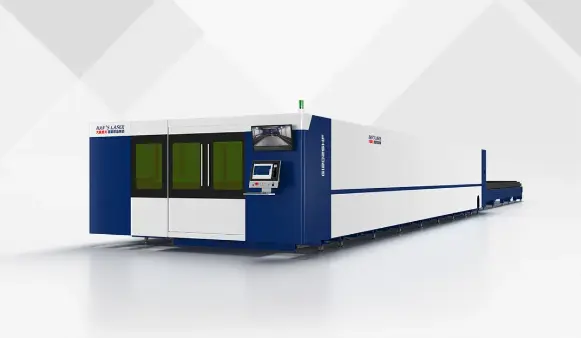

The Han's Laser HF 30 Series high-speed laser cutting machine is designed for plate processing in applications that require precision and structural consistency. Its cutting performance can help produce smooth edges and limit workpiece deformation, supporting subsequent welding and assembly.

With bevel-cutting capability, the system can process complex contours and prepare bevels in a single operation, potentially reducing downstream grinding and secondary machining. The HF 30 Series uses Han's self-developed HAN'S 901 control system and is designed for high-efficiency, high-precision and stable operation in drilling-equipment manufacturing.

Application: Cutting plate components for drilling and wellhead equipment, including parts requiring complex profiles or weld-preparation bevels.

2. Tube Cutting and Laser Welding for Oil and Gas Pipelines

Oil and gas gathering lines, process piping and prefabricated pipeline sections are central to field development and plant construction. Manufacturers often need to process multiple pipe diameters and material grades while maintaining cut accuracy and weld consistency.

Heavy-duty laser tube cutting

The Han's Laser TX Series heavy-duty laser tube cutting machine is designed for high-volume pipe processing. Its standard multi-tube loading configuration supports batch production, while the system can handle pipes up to 12 metres long, subject to the selected configuration and application requirements.

The TX Series is designed to process carbon steel, stainless steel and high-strength corrosion-resistant pipe materials. Bevel cutting supports A-, V- and Y-type bevel preparation in one operation, helping reduce grinding and secondary machining and preparing pipe ends for downstream welding.

Continuous laser tube welding

For pipeline and skid-module fabrication, Han's continuous laser tube welding machine is designed to process multiple pipe diameters with a combination of speed and flexibility. A high-precision seam-tracking system is configured to maintain tracking performance in challenging conditions such as weld spatter and steam.

The system can be applied to carbon steel, stainless steel, nickel-based alloys and titanium alloys, depending on the process setup. Consistent weld formation can help manufacturers reduce rework and non-destructive testing repairs, supporting more efficient pipe prefabrication.

Application: Processing and welding pipeline sections and fluid-transport tubes for oil and gas projects.

3. Laser Cutting for Pressure Vessels and Large Components

Pressure vessels and storage tanks contain critical load-bearing components, including heads, flange plates and reinforcing plates. Their size and geometry can make process flexibility and material utilisation important production considerations.

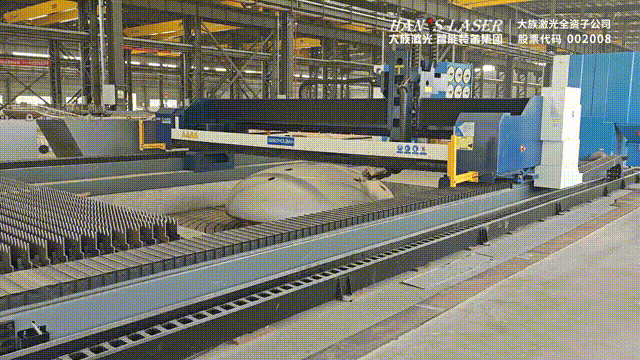

The Han's Laser LBE-H Series large-format laser cutting machine integrates a five-axis cutting head for plate cutting, bevel cutting and vessel-head processing. Depending on the equipment configuration and workpiece, one system can perform operations that might otherwise require multiple machines.

For vessel heads, the machine can support processes such as trimming, separation cutting, hole cutting and edge preparation for welding. High-precision processing can help reduce rework and support more efficient use of materials, labour and energy.

Application: Cutting large plates and processing pressure-vessel heads and related structural components.

4. Laser Cleaning for Surface Preparation and Maintenance

Oil and gas equipment can accumulate oil, rust, paint, chemical residues and oxide layers during operation or storage. Traditional methods such as abrasive blasting and chemical cleaning can generate waste, affect the substrate or require additional handling.

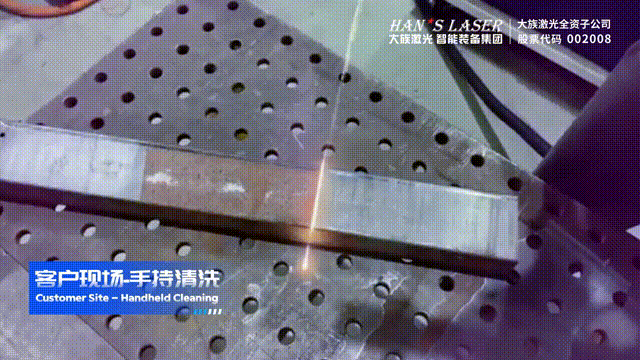

Han's handheld laser cleaning machine removes surface contaminants through laser ablation or detachment. The process is non-contact and does not require chemical agents; it can also reduce the need for cleaning consumables, depending on the application.

Potential uses include:

•Removing rust from tank and pipeline exteriors.

•Removing oxide scale from weld areas before welding.

•Cleaning weld residue after welding.

•Removing old coatings from flange sealing faces.

•Removing oil and surface contamination from valves during equipment maintenance.

Application: Surface preparation and maintenance for tanks, pipelines, welds, flanges and valves.

5. Permanent Laser Marking for Equipment Traceability

Pressure vessels, pressure pipes, valves, flanges and pump components often require reliable identification and traceability. Han’s laser cutting and tube cutting systems can integrate marking functions so that identification can be added during the cutting or material-preparation stage.

Depending on the production process and marking configuration, information such as material grade, heat or batch number, pressure rating and serial number can be marked on a part. Permanent marking can support traceability through manufacturing, inspection and service, and may be more durable than ink-based labels in demanding environments.

Application: Adding part identification and traceability data to oil and gas equipment components during production.

An Integrated Laser Processing Workflow

Han's Laser equipment can support multiple stages of oil and gas component manufacturing:

1.Laser Cutting and bevel preparation for plate and tube components.

2.Component fabrication for drilling equipment, pipelines and pressure vessels.

3.Laser welding for pipe and tube products.

4.Laser cleaning for surface preparation and maintenance.

5.Permanent marking for part identification and lifecycle traceability.

By bringing these processes together, manufacturers can create a more connected production workflow, reduce selected secondary operations and improve process consistency. Actual results depend on material, part geometry, production conditions, equipment configuration and process validation.

Frequently Asked Questions

1.What oil and gas components can be processed with Han's Laser equipment?

Potential applications include drilling-equipment components, pipeline sections, process tubes, pressure-vessel parts, tank components, valves, flanges and pump bodies. The appropriate machine and process depend on the material, dimensions and production requirements.

2.Can laser tube cutting prepare pipe ends for welding?

Yes. The Han’s Laser TX Series supports bevel cutting for A-, V- and Y-type bevel profiles. The required bevel geometry should be confirmed against the joint design and welding procedure.

3.Which materials can be laser processed?

The solutions described are intended for applications involving materials such as carbon steel, stainless steel, high-strength corrosion-resistant steels, nickel-based alloys and titanium alloys. Compatibility depends on the specific machine configuration, material grade, thickness and process parameters.

4.How does laser cleaning differ from abrasive blasting or chemical cleaning?

Laser cleaning uses a focused laser to remove or detach surface contaminants without contact. It does not require chemical cleaning agents and may reduce consumable use. Suitability should be evaluated for the substrate, contaminant, surface condition and required finish.

5.Can laser marking support oil and gas equipment traceability?

Laser marking can be used to place part-identification information on components. Marking durability and legibility depend on the material, marking method, surface condition and service environment.

The right process depends on the workpiece, material, thickness, production volume and required quality standard. Han’s Laser can configure laser cutting, tube cutting, welding, cleaning and marking solutions to match the specific production needs across the oil and gas equipment value chain.

Support More Efficient Oil and Gas Manufacturing with Han's Laser

From component preparation and pipeline fabrication to vessel processing, maintenance and permanent marking, Han's Laser Smart Equipment Group offers laser equipment and process solutions for a range of oil and gas manufacturing applications.

By combining cutting, tube processing, welding, cleaning and marking technologies, manufacturers can evaluate opportunities to improve production flow, reduce selected secondary operations and support quality and traceability requirements.

Contact Han's Laser to discuss your material, component geometry, production volume and process requirements.
