Precision Tube Cutting Solution for Motorcycle Frames and Components

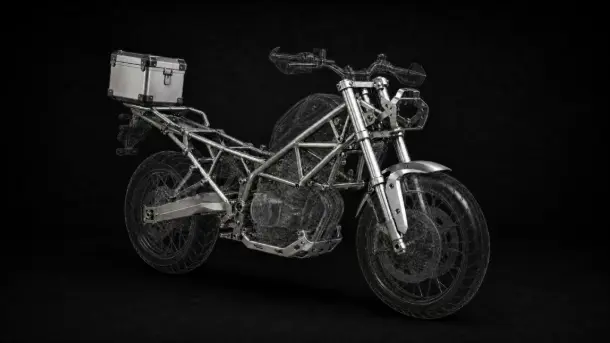

The global motorcycle industry is continuously moving toward higher performance, lighter structures, and more precise manufacturing. As motorcycle manufacturers and component suppliers improve production standards, the demand for efficient and accurate metal processing solutions continues to grow.
To meet these requirements, Han’s Laser F1 High-Speed Tube Laser Cutting Machine provides an efficient solution for motorcycle tube component manufacturing, helping manufacturers improve productivity, reduce material waste, and achieve stable mass production.
Tube Cutting in Motorcycle Manufacturing: A Critical Process

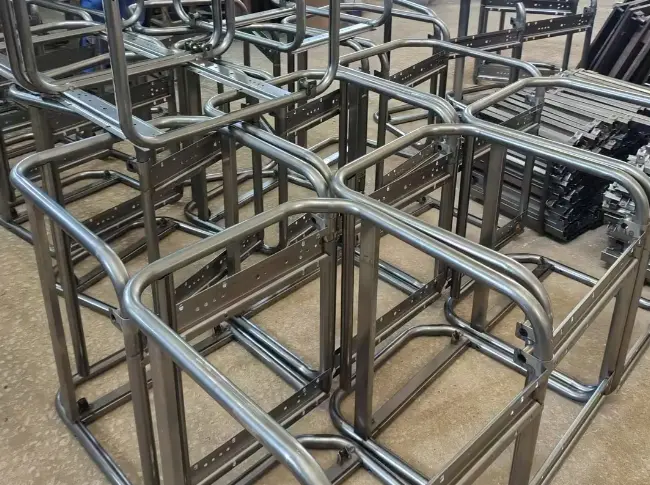

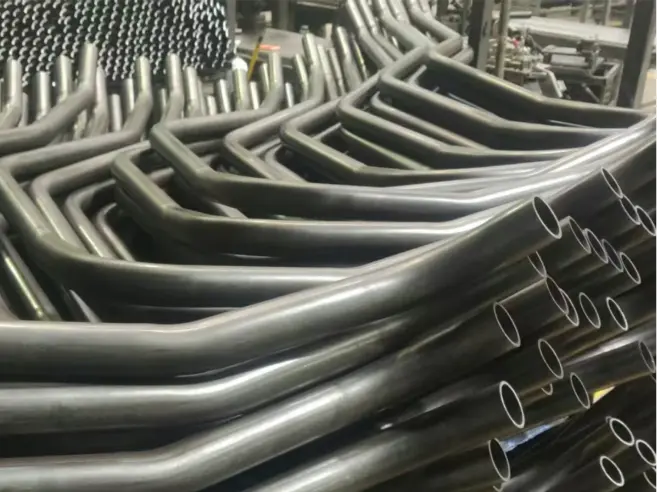

Tube processing plays a critical role in motorcycle manufacturing, especially for key components such as frames, swing arms, handlebars, and protective structures, which are typically manufactured from round tubes, square tubes, rectangular tubes, and specialty profiles During motorcycle production, even small cutting deviations can become larger problems during bending, welding, and assembly processes.
High-precision tube laser cutting helps manufacturers:
•Improve component consistency
•Reduce rework and material waste
•Shorten production cycles
•Improve welding and assembly accuracy
The Han’s Laser F1 tube laser cutting machine is designed for high-speed and high-precision processing of small and medium-sized tubes, making it suitable for motorcycle manufacturers and automotive component suppliers.
Han’s Laser F1 Tube Laser Cutting Machine
Designed for Efficient Motorcycle Tube Processing
The F1 high-speed tube laser cutting machine is developed for small tube processing applications.
It supports cutting of:
•Round tubes: 10–120 mm
•Square tubes
•Angle steel
•Channel steel
•Various metal profiles
The machine is widely used for motorcycle frames, exhaust components, brackets, protective parts, and other tube-based structures.
High-Speed Cutting for Mass Production
For motorcycle parts manufacturers, production efficiency is a key factor.
The F1 tube laser cutting machine features:
•Maximum acceleration: 1.5G
•Rapid traverse speed: up to 150 m/min
•Chuck rotation speed: up to 150 r/min
The high dynamic performance enables fast tube positioning and cutting, reducing cycle time and improving production efficiency for large-volume orders.
With an automatic loading system, the machine can achieve continuous production with minimal manual intervention.
The automatic loading process can complete material changeover within approximately 12 seconds, helping manufacturers reduce idle time and maintain stable production flow.
High Precision Tube Cutting for Better Welding Quality
Laser tube cutting quality directly affects the following welding and assembly processes.
The F1 provides:
-
Smooth cutting edges
-
Low burr formation
-
Reduced secondary processing
-
Stable dimensional accuracy
The processed tubes can be directly transferred to welding operations, improving overall manufacturing efficiency.
The machine is also equipped with intelligent weld seam detection technology.
Through visual identification, the system detects tube weld seams and automatically adjusts the cutting path to avoid unstable cutting areas caused by weld positions.
This prevents deformation and tube breakage caused by cutting through welds, improving overall yield rates
Intelligent Vision Technology Improves Cutting Accuracy
The F1 supports line laser scanning and center positioning functions.
Using dual-line laser vision technology, the system performs non-contact scanning of tube profiles and compensates for tube deformation.
Benefits include:
•Improved hole positioning accuracy
•Better cross-surface cutting quality
•More stable processing results
The machining accuracy can be controlled within ±0.2 mm, supporting precision manufacturing requirements for motorcycle structural components.
Short Tail Material Processing Reduces Production Cost
Material utilization is an important consideration in tube processing.
The F1 is equipped with cylinder-based overrun short-tail processing technology and supports optional servo overrun functions.
Different short-tail processing modes allow manufacturers to select the most suitable solution according to production requirements.
This helps:
•Reduce material waste
•Lower manufacturing costs
•Improve overall material efficiency
Complete Motorcycle Manufacturing Solution
Tube Cutting + Sheet Metal Fabrication + Welding
In addition to tube processing, motorcycle manufacturers also require solutions for sheet metal components such as aluminum alloy luggage boxes and related accessories.
These solutions help manufacturers simplify production processes and improve product consistency.
G PRO Fiber Laser Cutting Machine
The G PRO series fiber laser cutting machine is optimized in optical systems, motion control, and cutting technology.
Key advantages:
•High acceleration performance up to 2.5G
•Increased thin-sheet aluminum cutting efficiency
•High-speed and stable processing
•Excellent batch production consistency
It is suitable for:
•Sheet metal fabrication
•Electrical cabinets
•Precision metal parts
•Industrial components
HBS Electro-Hydraulic Servo Press Brake
The HBS series press brake combines structural optimization and advanced hydraulic technology.
Features include:
•High-rigidity frame design
•Long-term bending accuracy stability
•Energy-saving hydraulic system
•Low-noise operation
•Efficient batch production
It is suitable for aluminum alloy motorcycle luggage boxes and various metal forming applications.
Handheld Laser Welding Machine
Han’s Laser handheld laser welding machines provide a flexible welding solution for motorcycle components.
Advantages include:
•High welding speed
•Easy operation
•Reduced labor requirements
•Stable welding quality
It is suitable for:
•Motorcycle tube structures
•Aluminum alloy parts
•Sheet metal components
•Small-batch and mass production
Conclusion
As motorcycle manufacturing continues to move toward automation, precision, and intelligent production, manufacturers need reliable metal processing equipment to improve efficiency and product quality.
With the F1 high-speed tube laser cutting machine, combined with fiber laser cutting, press brake, and laser welding solutions, Han’s Laser provides a complete manufacturing solution for motorcycle frames, tube components, and metal parts.
The integrated solution helps motorcycle manufacturers reduce production costs, improve processing efficiency, and achieve higher-quality manufacturing.
